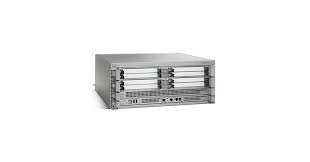

Cisco ASR1004 ASR1000-ESP20 ASR1004-20G/K9 Dual PWR-AC

Description:

The Cisco ASR1004 is a 4RU modular aggregation services router built for enterprise edge and service provider applications. It supports advanced services including routing, security, NAT, MPLS, and encryption through flexible modular slots for Shared Port Adapters (SPAs), route processors, and embedded services processors (ESPs). The ASR1004 is ideal for high-throughput, resilient deployments requiring scalability, redundancy, and advanced service integration.

TECHNICAL SPECIFICATIONS:

Manufacturer: Cisco Systems
Model Number: ASR1004
Form Factor: 4 RU, rack-mountable
Chassis Slots: 8 x SPA slots, 1 x Route Processor slot, 1 x ESP slot
System Bandwidth: Up to 40 Gbps (dependent on ESP model)
Route Processor Options: RP1 (4 GB DRAM), RP2 (8 GB DRAM)
Embedded Services Processor (ESP): Supports ESP10, ESP20, ESP40
Flash Memory: 8 GB onboard, USB expansion supported
Interface Ports: Configurable via SPA modules (no fixed ports)
SPA Support: Up to 8 Shared Port Adapters
Power Supply: Dual redundant, hot-swappable (AC or DC)
Power Consumption: Up to 560 W (AC), 590 W (DC)
Cooling: Front-to-back airflow
Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -39°C to 70°C (-38°F to 158°F)
Operating Humidity: 10% to 85% (non-condensing)
Short-Term Humidity: 5% to 90% (non-condensing)
Dimensions (H x W x D): 7 x 17.2 x 18.15 in (177.8 x 437.4 x 461 mm)
Weight: Approx. 68.7 lb (31.2 kg) fully loaded
