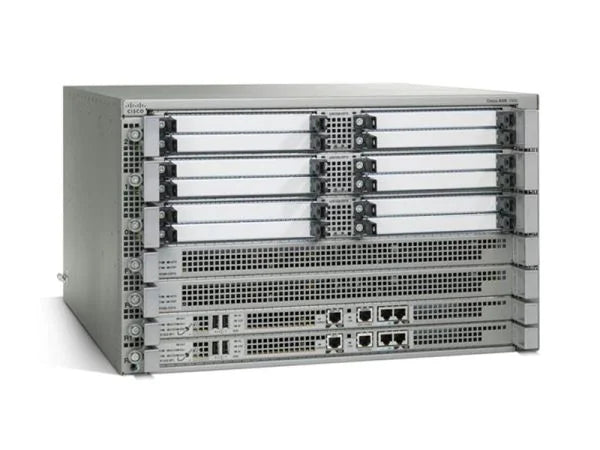

Cisco ASR1006 ASR1000-ESP20 ASR1006-20G/K9 Dual ASR1006-PWR-AC

DESCRIPTION
The Cisco ASR1006 is a powerful, modular router in the ASR 1000 Series, built to support high-throughput, secure WAN edge services for enterprise, service provider, and data center environments. With six chassis slots supporting route processors, embedded services processors (ESPs), and I/O modules, the ASR1006 delivers high scalability, advanced security, and seamless service integration. It’s designed for applications such as IPsec VPNs, MPLS, firewall, and NAT, as well as high-performance routing and application optimization.

TECHNICAL SPECIFICATIONS
Model: ASR1006
Chassis Slots:
– 2 x Route Processor (RP) slots
– 2 x Embedded Services Processor (ESP) slots
– 3 x SPA Interface Processor (SIP) slots (supporting up to 6 SPAs)
Performance: Up to 100 Gbps (with proper ESP and RP configuration)
Redundancy:
– Dual power supply support
– Redundant RPs and ESPs
Power Supply: Dual (AC or DC options)
Rack Units: 6U
Cooling: Front-to-back airflow with redundant fans
Network Interfaces: Depends on installed SIP/SPA modules
Software: Cisco IOS XE
High Availability: ISSU (In-Service Software Upgrade), Stateful Failover, Control/Plane Separation
Security Features: Integrated firewall, NAT, IPsec VPN, zone-based security, DoS protection
Management: CLI, SNMP, NetFlow, Cisco Prime, REST APIs
