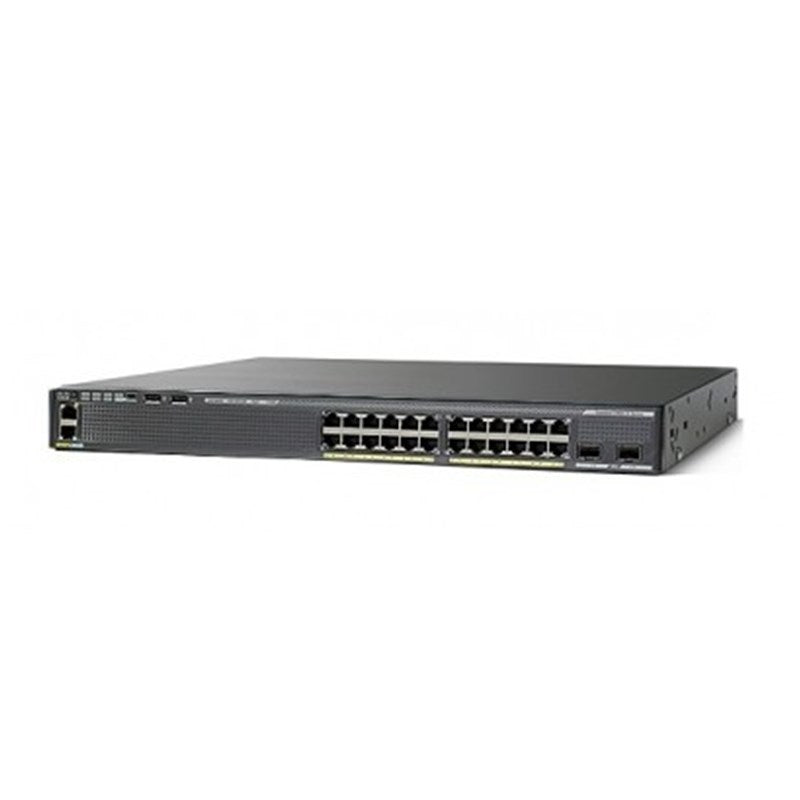

Cisco Catalyst WS-C2960XR-24PD-I 2960-XR Series Switch WSC2960XR24PDI

Description:

The Cisco WS-C2960XR-24PD-I Catalyst 2960-XR Series Switch is used in enterprise network infrastructures to provide managed Gigabit Ethernet switching with Power over Ethernet support and advanced Layer 3 capabilities. Commonly installed in corporate campus networks, enterprise branch offices, and data center access layers where reliable switching and powered device connectivity are required. Network administrators and IT infrastructure teams use this switch for network expansion, replacement of legacy switches, and deployment of scalable managed switching platforms supporting IP phones, wireless access points, and other Ethernet-powered devices.

Applications:

The Cisco WS-C2960XR-24PD-I switch is widely used in enterprise and campus networking environments where reliable Gigabit connectivity and Power over Ethernet capabilities are required. It is commonly deployed in corporate offices, universities, healthcare facilities, and government networks where desktop computers, VoIP phones, wireless access points, and surveillance cameras connect to centralized switching infrastructure to support secure and efficient LAN communication.

Technical Specifications:

• Manufacturer Part Number (MPN): WS-C2960XR-24PD-I
• Product Type: Managed Gigabit Ethernet Switch with PoE
• Series: Cisco Catalyst 2960-XR
• Total Ethernet Ports: 24 x 10/100/1000 Gigabit Ethernet ports
• Power over Ethernet: PoE+ supported
• PoE Power Budget: Up to 370 Watts
• Uplink Interfaces: 2 x 10 Gigabit SFP+ uplink ports
• Switching Capacity: Up to 216 Gbps
• Forwarding Rate: Up to 95.2 Mpps
• Software Image: LAN Base / Layer 3 Lite features
• Installation Type: Rack-mountable switch
• Power Supply: Internal AC power supply
• Operating Environment: Enterprise campus and branch networks

Common Replacements:

• Cisco C9200L-24P-4X-E Catalyst 9200L Switch
• Cisco WS-C2960X-24PD-L Catalyst 2960X Switch
• Cisco C9300-24P-E Catalyst 9300 Switch
