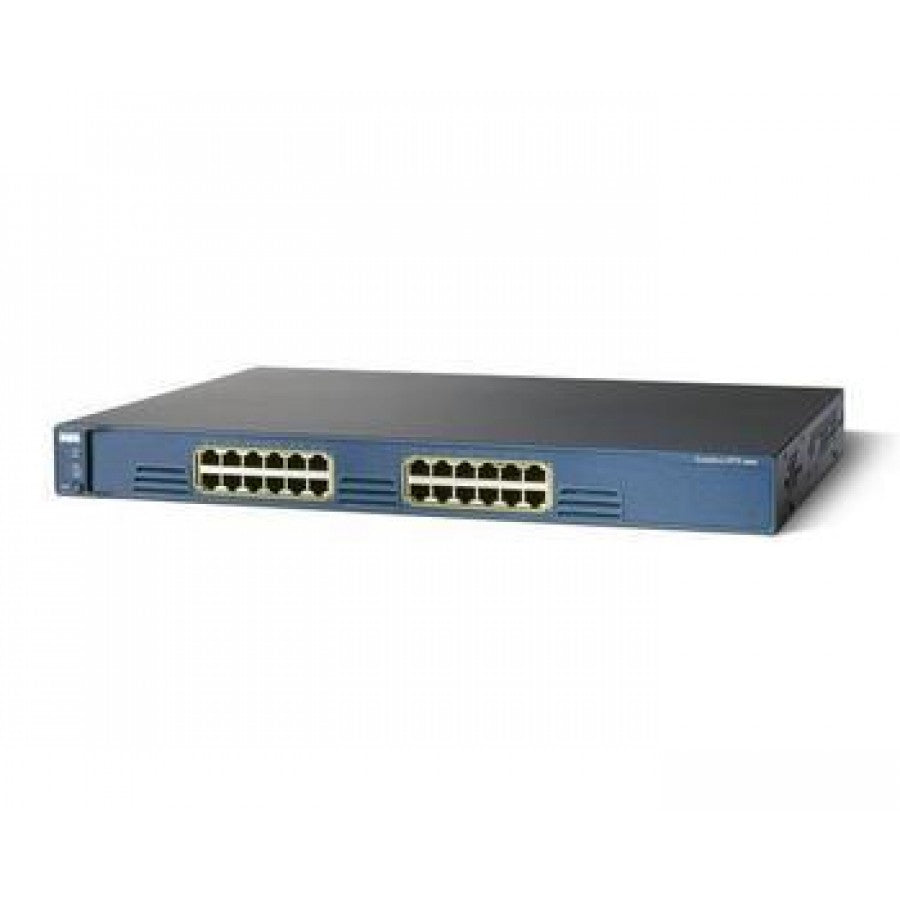

Cisco CATALYST 2970 SERIES WS-C2970G-24T-E 24-PORT GIGABIT ETHERNET SWITCH WSC2970G24TE

Description:

The Cisco Catalyst WS-C2970G-24T-E is a 24-port Gigabit Ethernet standalone switch designed for high-performance access layer deployments in small to medium-sized networks. With wire-speed Layer 2 switching and enhanced image (EI) software, this switch supports advanced features such as quality of service (QoS), security filtering, and multicast management. It delivers reliable, non-blocking performance and is ideal for environments requiring affordable Gigabit connectivity without uplink modularity or stacking capabilities.

Technical Specifications:

Manufacturer: Cisco Systems
Model Number: WS-C2970G-24T-E
Series: Catalyst 2970G Series
Switch Type: Layer 2 Managed Standalone Switch
Downlink Ports: 24 x 10/100/1000 Ethernet (RJ-45)
Uplink Ports: None (fixed configuration)
Software Feature Set: Enhanced Image (EI)
Switching Capacity: 32 Gbps
Forwarding Rate: 23.8 Mpps
MAC Address Table Size: 8,000 entries
QoS Support: Yes (Advanced QoS features)
Security Features: Port security, ACLs, 802.1X
Multicast Support: IGMP snooping
Form Factor: 1U Rack Mountable
Power Supply: Internal fixed AC
Dimensions: 1.75 x 17.5 x 12.8 in (4.45 x 44.5 x 32.5 cm)
Weight: Approx. 10.6 lbs (4.8 kg)
