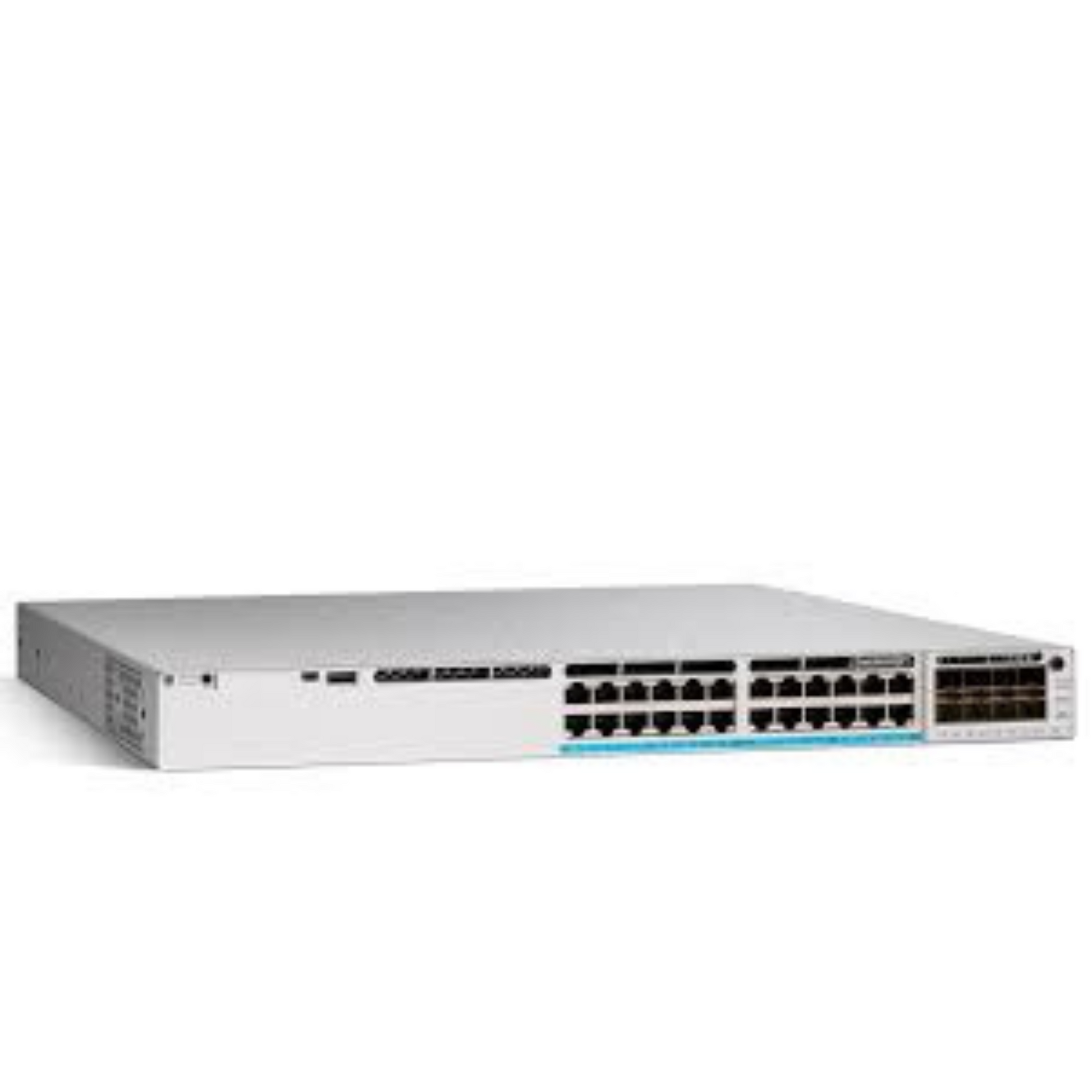

Cisco Catalyst 9300 24 UPOE C9300-24U-A

Description:

The Cisco C9300-24U-A is a 24-port stackable switch from the Catalyst 9300 Series, designed for enterprise campus and access layer deployments. It features 24 Universal Power over Ethernet (UPOE) ports, providing up to 60W per port to power high-demand devices like phones, access points, and surveillance cameras. With support for modular uplinks, advanced Layer 3 features, and Cisco’s Network Advantage licensing tier, the C9300-24U-A offers scalable, secure, and energy-efficient networking for modern IT environments.

TECHNICAL SPECIFICATIONS:
Model: C9300-24U-A
Series: Cisco Catalyst 9300
Ports: 24 x 1G UPOE (60W per port)
Uplink Options: Modular (4x 1G/10G/25G, depending on module)
Stacking: StackWise-480 (up to 480 Gbps stacking bandwidth)
MAC Address Table: 32,000 entries
Routing Capabilities: Layer 3 with static, RIP, OSPF, EIGRP, BGP
PoE Standards: IEEE 802.3af, 802.3at (PoE+), UPOE
Performance: 128 Gbps switching capacity, 95.2 Mpps forwarding rate
Software: Cisco IOS XE with Network Advantage license
Security:
Encrypted Traffic Analytics (ETA)
MACsec 256-bit encryption
TrustSec and SGT support
Secure Boot and image signing
Redundancy: Dual redundant power supplies and fans
Management: CLI, SNMP, NetFlow, Cisco DNA Center
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Dimensions: 1.73 in x 17.5 in x 17.5 in (1RU)
Weight: Approx. 16.4 lbs
Compliance: UL, CE, FCC, RoHS
