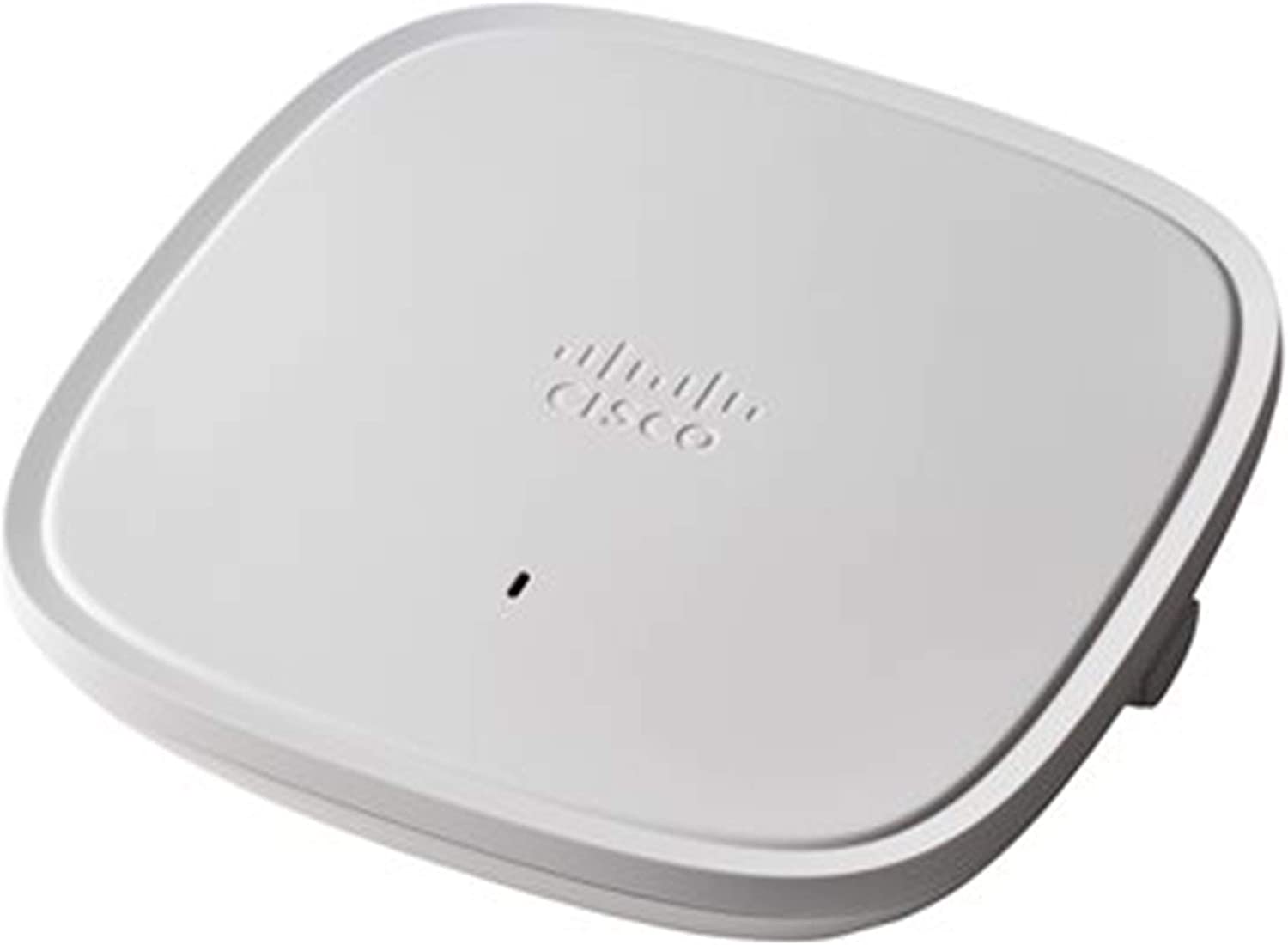

Cisco Catalyst C9115AXI-B Wireless Access Point 9115AXI C9115AXIB

DESCRIPTION
The Cisco C9115AXI-B is a Wi-Fi 6 (802.11ax) indoor access point from the Catalyst 9100 series, designed for high-density enterprise environments. Featuring an internal antenna and support for the B regulatory domain (typically for North America), this AP delivers improved capacity, coverage, and efficiency. It’s ideal for offices, campuses, healthcare, and retail spaces seeking to upgrade to next-generation wireless performance with WPA3 security and IoT readiness.

TECHNICAL SPECIFICATIONS
Model: C9115AXI-B
Series: Cisco Catalyst 9115AX
Wi-Fi Standard: 802.11ax (Wi-Fi 6)
Antenna: Internal, omnidirectional
Regulatory Domain: B (North America)
Radios:
– Dual-band 2.4 GHz (4x4) and 5 GHz (4x4) MU-MIMO
– BLE (Bluetooth Low Energy) radio for IoT support
Data Rates: Up to 5.38 Gbps aggregate throughput
Ports:
– 1 x 5 Gbps multigigabit Ethernet (RJ-45), PoE+ (802.3at)
Power:
– 802.3at PoE+ or DC adapter (not included)
– Typical consumption: ~20.9W
Mounting: Ceiling or wall mount
Security: WPA3, Cisco Trust Anchor, Secure Boot
Controller Support: Cisco Catalyst 9800 Series Wireless Controllers
Software: Cisco IOS XE, supports Mobility Express or controller-based deployment
Dimensions: 8.5 x 8.5 x 1.9 in (216 x 216 x 48 mm)
