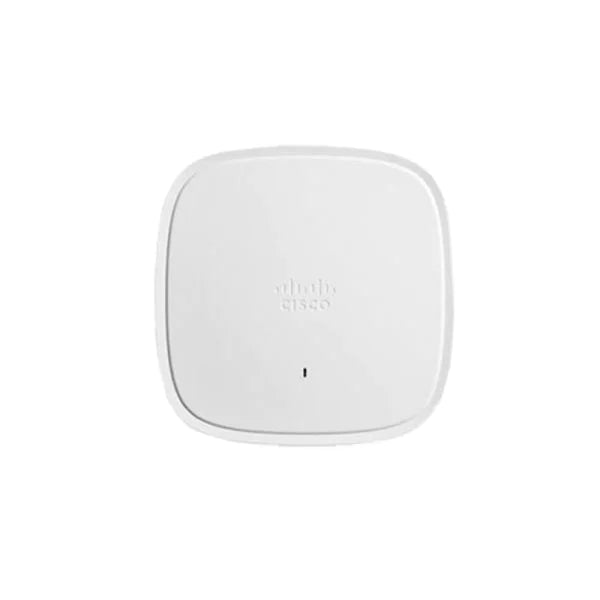

Cisco Catalyst C9120AXI-A Wireless Access Point C9120AXIA

Description:

The Cisco Catalyst C9120AXI-A Wireless Access Point is used in enterprise wireless networking systems for high-speed Wi-Fi connectivity and network access. Commonly installed in offices, campuses, hospitals, and commercial buildings requiring reliable wireless coverage and performance. Maintenance teams, OEMs, and system integrators use this part for access point deployment, network upgrades, and wireless infrastructure expansion applications.

Applications:

The Cisco Catalyst C9120AXI-A is used in enterprise and commercial environments requiring secure and high-performance wireless connectivity. It is typically mounted on ceilings or walls to provide Wi-Fi coverage for users, support high-density device environments, and enable applications such as VoIP, video streaming, and cloud access in corporate, education, and healthcare settings.

Technical Specifications:

• Manufacturer Part Number (MPN): C9120AXI-A
• Product Type: Wireless Access Point
• Series: Cisco Catalyst 9120 Series
• Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Data Rate: Up to 5.2 Gbps aggregate throughput
• Antenna Type: Internal Antennas
• MIMO Support: 4x4 MU-MIMO
• Ethernet Interface: 1 x 2.5 Gigabit Ethernet (Multigigabit)
• Power Options: Power over Ethernet (PoE+)
• Security Features: WPA3, WPA2, 802.1X Authentication
• Management: Cisco DNA Center, Wireless LAN Controller
• Mounting Type: Ceiling or Wall Mount
• Operating Temperature: 0°C to 40°C

Common Replacements:

• Cisco Catalyst C9130AXI-A Wireless Access Point
• Cisco Aironet 2802I-A Wireless Access Point
• Cisco Catalyst C9115AXI-A Wireless Access Point
