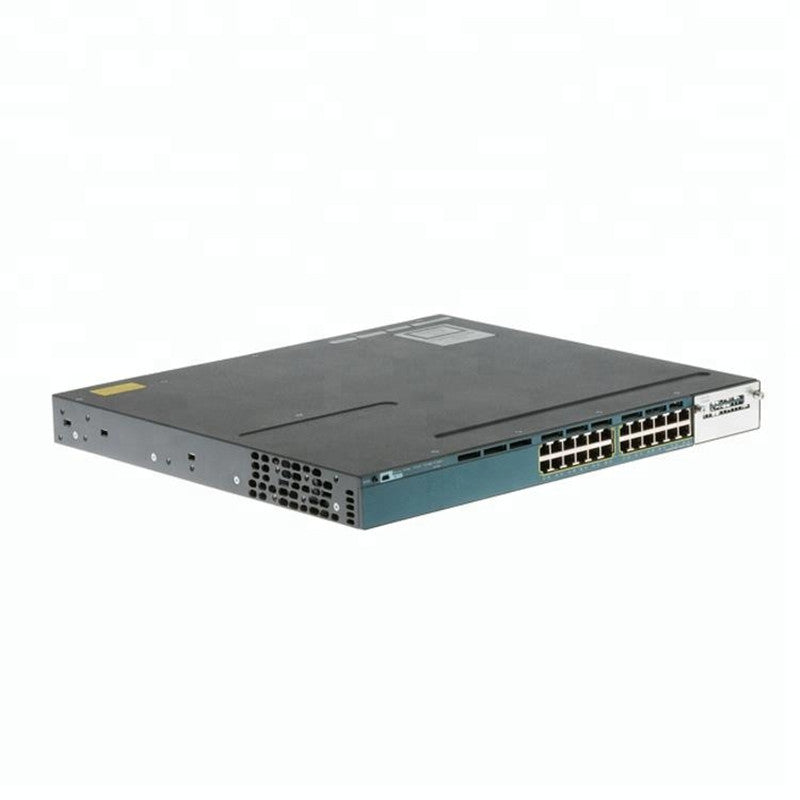

Cisco Catalyst WS-C3560X-24P-L 24-Ports Rack-Mountable Switch Managed WSC3560X24PL

Description:

The Cisco Catalyst WS-C3560X-24P-L Managed Ethernet Switch is used in enterprise networking systems to provide Layer 3 switching, Power over Ethernet (PoE) connectivity, and advanced network management within Cisco Catalyst 3560-X series infrastructures. Commonly installed in enterprise access layer networks, campus LAN deployments, office building network closets, and IP communication environments where reliable switching and PoE power delivery are required for connected devices. Maintenance teams, network administrators, and system integrators use this switch for network expansion, infrastructure upgrades, access layer deployment, and replacement of legacy managed Ethernet switches in enterprise and campus networks.

Applications:

The Cisco Catalyst 3560X-24P-L switch is designed for enterprise and campus network environments that require high-performance switching and PoE support for connected devices. It is frequently deployed in office buildings, educational institutions, healthcare facilities, and retail environments to connect IP phones, wireless access points, network cameras, and user workstations. With Layer 3 switching capabilities and centralized management features, the switch enables efficient traffic routing, network segmentation, and reliable connectivity across enterprise LAN infrastructures.

Technical Specifications:

• Manufacturer Part Number (MPN): WS-C3560X-24P-L
• Product Type: Managed Ethernet Switch
• Series: Cisco Catalyst 3560-X
• Total Ports: 24 × Gigabit Ethernet PoE ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at (PoE+)
• Switching Capacity: Up to 160 Gbps
• Forwarding Rate: Up to 65.5 Mpps
• Layer Support: Layer 3 switching with IP Base feature set
• Uplink Module: Optional network module slot for SFP or SFP+ uplinks
• Management: Cisco IOS software management
• Form Factor: Rack-mountable switch
• Deployment: Enterprise access layer switching

Common Replacements:

• Cisco WS-C3560X-48P-L
• Cisco C9300-24P-E
• Cisco WS-C3850-24P-L
