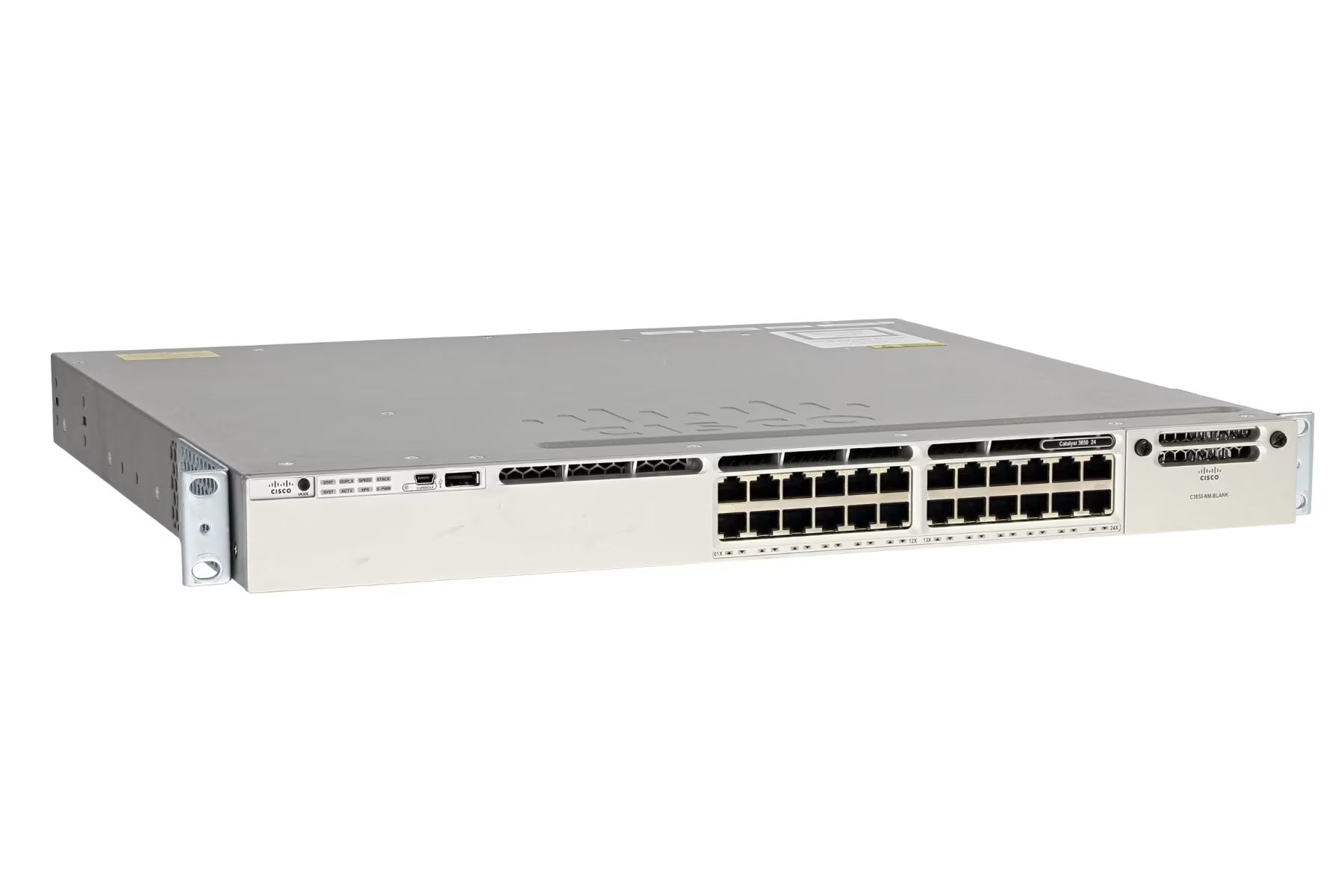

Cisco Catalyst WS-C3850-24T-L Switch 24 Port Gigabit 350W WSC385024TL

Description:

The Cisco Catalyst WS-C3850-24T-L is a 24-port Gigabit Ethernet Layer 2 switch designed for enterprise access networks. It supports modular uplinks and Cisco StackWise-480 technology, enabling high availability and scalability. With integrated support for wired and wireless convergence, this switch provides robust performance and flexibility for growing network demands.

Technical Specifications:

Manufacturer: Cisco Systems
Model Number: WS-C3850-24T-L
Series: Catalyst 3850 Series
Switch Type: Layer 2 Managed
Downlink Ports: 24 x 10/100/1000 Ethernet (RJ-45)
Uplink Module Slot: 1 (modular uplinks such as 4 x 1G or 2 x 10G SFP)
Stacking Support: StackWise-480, up to 9 switches
Switching Capacity: 92 Gbps
Forwarding Rate: 68.4 Mpps
Memory: 4 GB DRAM
Flash Memory: 2 GB
MAC Address Table Size: 32,000 entries
Jumbo Frame Support: Up to 9,198 bytes
Power Supply: Modular, supports redundant power (PWR-C1-350WAC default)
Fan Modules: Redundant and hot-swappable
Form Factor: 1U Rack Mountable
Dimensions: 1.75 x 17.5 x 17.7 in (4.45 x 44.5 x 45 cm)
Weight: Approx. 15.9 lbs (7.2 kg)
