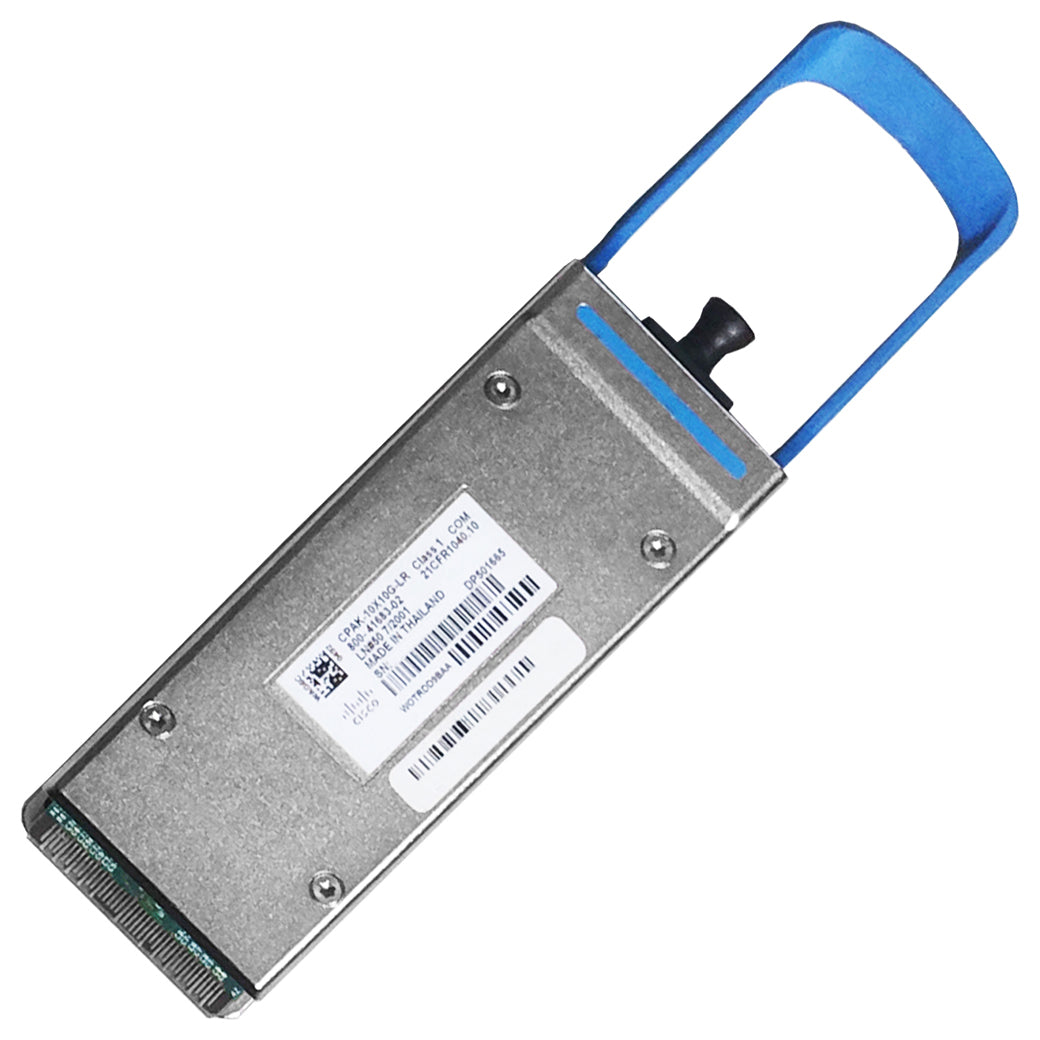

Cisco CPAK-10X10G-LR CPAK Module for SMF New CPAK10X10GLR

Description:

The Cisco CPAK-10X10G-LR CPAK Optical Transceiver Module is used in high-speed networking systems to provide long-range fiber optic connectivity for data center and enterprise network infrastructures. It supports multiple 10 Gigabit Ethernet channels over single-mode fiber, enabling high-bandwidth optical communication between switches, routers, and core networking equipment. Commonly installed in data center core switches, aggregation switches, and high-performance network infrastructure where long-distance fiber connectivity is required. Network administrators and system integrators use this module for fiber network expansion, high-speed uplink deployment, replacement of existing optical modules, and integration of long-range fiber communication links.

Applications:

The Cisco CPAK-10X10G-LR optical module is used in enterprise and data center networking environments where high-capacity fiber connectivity is required between core network devices. It is commonly deployed in data centers, cloud infrastructure environments, enterprise backbone networks, and telecommunications facilities to connect switches, routers, and aggregation equipment over long distances using single-mode fiber. The module supports reliable optical communication and enables scalable high-bandwidth data transmission for critical network operations.

Technical Specifications:

• Manufacturer Part Number (MPN): CPAK-10X10G-LR
• Product Type: Optical Transceiver Module
• Form Factor: CPAK
• Interface Type: 100 Gigabit Ethernet Optical Module
• Transmission Channels: 10 × 10 Gigabit Ethernet Lanes
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: MPO Optical Connector
• Optical Standard: 100GBASE-LR10
• Maximum Transmission Distance: Up to 10 km over SMF
• Compatibility: Cisco switches and routers supporting CPAK modules
• Application: High-speed data center and enterprise network connectivity
• Installation Type: Hot-swappable optical transceiver module

Common Replacements:

• Cisco QSFP-100G-LR4-S 100G QSFP Optical Transceiver
• Cisco QSFP-100G-PSM4-S Optical Transceiver
• Cisco CFP-100G-LR4 Optical Transceiver
