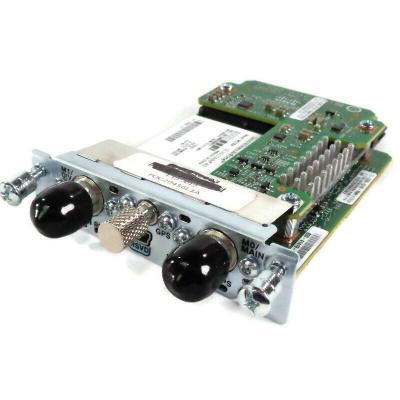

Cisco EHWIC-4G-LTE-A MC7700 AT&T 700MHZ HSPA+ Wireless WAN Interface Card EHWIC4GLTEA

DESCRIPTION:
The Cisco EHWIC-4G-LTE-A is a 4G LTE multimode WAN interface card designed for use with Cisco Integrated Services Routers (ISR G2). This EHWIC module provides reliable and secure wireless WAN connectivity using global LTE and 3G cellular networks. Ideal for distributed enterprise branches, retail stores, and mobile network applications, it enables always-on connectivity with features like dual SIM support, failover protection, GPS, and integrated management through Cisco IOS. The "-A" version is optimized for the Americas region and supports major carriers in the U.S., Canada, and Latin America.

TECHNICAL SPECIFICATIONS:
Manufacturer: Cisco Systems
Model: EHWIC-4G-LTE-A
Form Factor: Enhanced High-Speed WAN Interface Card (EHWIC)
Supported Cellular Networks:
– 4G LTE: Bands 2, 4, 5, 17
– 3G: UMTS/HSPA+/DC-HSPA+: 850, 1900, 2100 MHz
– 2G: EDGE/GPRS/GSM: 850, 900, 1800, 1900 MHz
Data Rates:
– LTE: Downlink up to 100 Mbps / Uplink up to 50 Mbps
– HSPA+: Up to 42 Mbps downlink
SIM Card Slots: Dual mini-SIM (active/standby for failover)
Carrier Support: Verizon, AT&T, Rogers, Telus, and others in the Americas
Connector: 2 x SMA antenna connectors (Main and Diversity), 1 x GPS connector (SMA)
Antenna Support: External antennas included or optional high-gain antennas
Management: Integrated into Cisco IOS with CLI, SNMP, and Cisco Prime
Security: IPsec VPN, GRE tunneling, DMVPN, Zone-Based Firewall
Power Consumption: ~3W average
Compatible Routers: Cisco ISR G2 platforms such as 1900, 2900, and 3900 series
Dimensions: 3.1 x 2.3 x 0.6 in (approx. card size)
