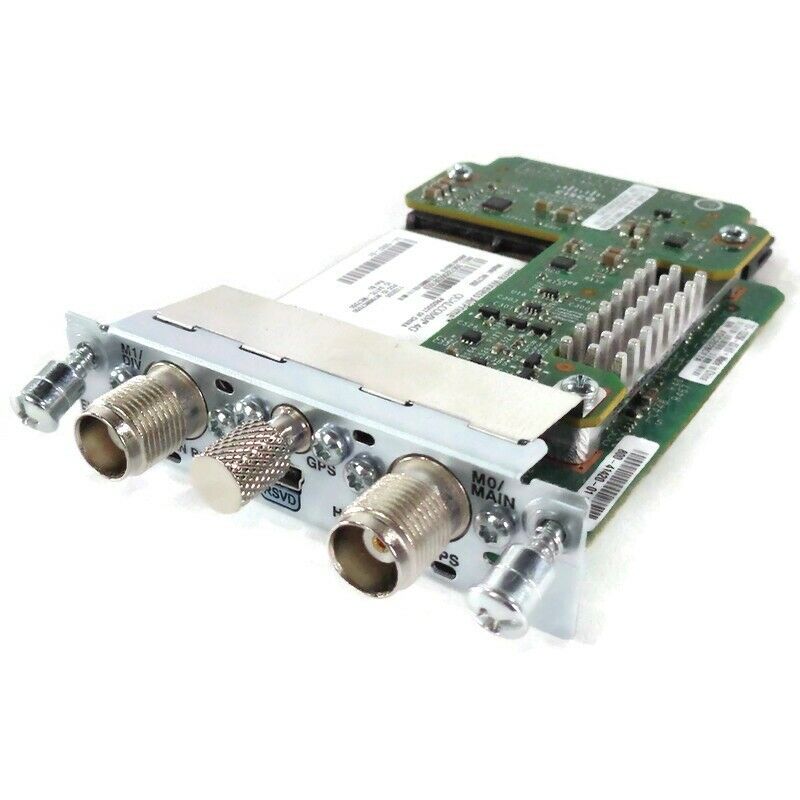

Cisco EHWIC-4G-LTE-VZ WWAN 4G LTE Enhanced High Speed Interface Card 73-13256-03

Description:

The Cisco EHWIC-4G-LTE-VZ is a 4G LTE Enhanced High-Speed WAN Interface Card (EHWIC) designed for Verizon Wireless networks. It enables secure, high-speed wireless WAN connectivity for Cisco Integrated Services Routers (ISR) in mobile, branch, or failover deployments. Ideal for remote or temporary sites, this module offers consistent, carrier-certified 4G LTE access with enterprise-class reliability and management features.

TECHNICAL SPECIFICATIONS:
Manufacturer: Cisco
Model Number: EHWIC-4G-LTE-VZ
Type: 4G LTE WAN Interface Card (Verizon Certified)
Carrier Support: Verizon Wireless (USA)
Network Compatibility: LTE (Bands 13), EV-DO Rev A fallback
SIM Card Slot: 1 (Mini-SIM – 2FF)
Max Download Speed: Up to 100 Mbps
Max Upload Speed: Up to 50 Mbps
Antenna Connections: 2 x SMA connectors (Main and Diversity/Optional GPS)
GPS Support: Optional, with compatible antennas
LED Indicators: Signal strength, service status, activity
Compatibility: Cisco 1900, 2900, 3900 Series ISR G2 routers
Power Requirements: Supplied by host router
Dimensions: 3.1 x 0.8 x 6.9 in (7.9 x 2 x 17.5 cm)
Weight: Approx. 0.5 lbs (0.23 kg)
