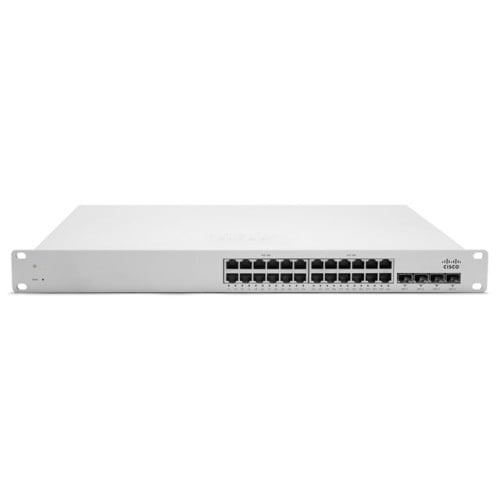

Cisco Meraki MS320-24P-HW 24 Port Switch MS32024PHW

Description:

The Cisco Meraki MS320-24P-HW cloud-managed Ethernet switch is used in enterprise network infrastructure to provide Layer 2 switching and Power over Ethernet connectivity with centralized management through the Meraki cloud platform. Commonly installed in corporate network closets, campus environments, retail locations, and branch offices where reliable switching is required for wireless access points, IP phones, and network devices. Network administrators and IT integrators use this switch for network deployment, infrastructure upgrades, and replacement of legacy access-layer switches while maintaining simplified cloud-based monitoring and configuration.

Applications:

The Cisco Meraki MS320-24P-HW switch is commonly deployed in enterprise and distributed business networks where centralized cloud management and PoE connectivity are required. It is used in corporate offices, educational institutions, healthcare facilities, retail stores, and hospitality environments to connect computers, wireless access points, VoIP phones, and surveillance cameras while allowing administrators to configure VLANs, monitor traffic, and manage network performance through the Meraki cloud dashboard.

Technical Specifications:

• Manufacturer: Cisco Meraki
• Manufacturer Part Number: MS320-24P-HW
• Product Type: Cloud-Managed Layer 2 Ethernet Switch
• Total Ports: 24 × 10/100/1000 Gigabit Ethernet PoE ports
• Uplink Ports: 4 × 1 Gigabit SFP uplink interfaces
• PoE Standard: IEEE 802.3af / IEEE 802.3at PoE+
• PoE Budget: Up to 370 W total PoE power
• Switching Capacity: Up to 88 Gbps
• Forwarding Rate: Up to 65.5 Mpps
• Management Platform: Cisco Meraki Cloud Dashboard
• Features: VLAN support, QoS, link aggregation, port mirroring
• Security Features: 802.1X authentication, DHCP snooping, port security
• Form Factor: Rack-mountable switch chassis
• Power Supply: Internal AC power supply

Common Replacements:

• Cisco Meraki MS225-24P-HW Cloud-Managed Switch
• Cisco Meraki MS250-24P-HW Cloud-Managed Switch
• Cisco Catalyst C9200L-24P-4G-E Ethernet Switch
