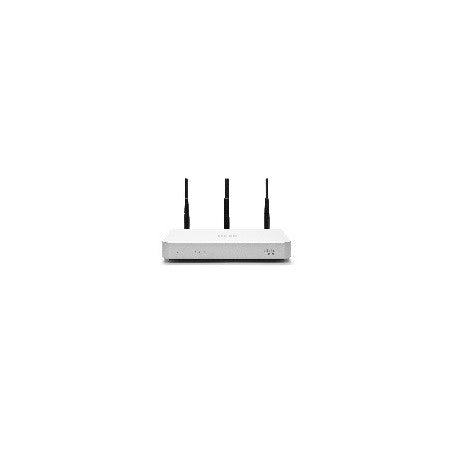

Cisco Meraki MX60W-HW Cloud Managed Security Appliance MX60WHW

Description:

The Cisco Meraki MX60W-HW Cloud Managed Security Appliance is used in enterprise and small business network infrastructures to provide integrated firewall protection, secure VPN connectivity, and wireless networking through centralized cloud-based management. This security appliance combines advanced security features with built-in wireless access capabilities, allowing organizations to manage network security, traffic control, and wireless connectivity from the Meraki cloud dashboard. Designed for branch offices and distributed network environments, it enables simplified deployment, remote monitoring, and secure internet access for connected users and devices. Network administrators and system integrators commonly deploy this appliance for repair, retrofit, expansion, or replacement in branch office networks, retail locations, and managed IT infrastructures.

Applications:

The Cisco Meraki MX60W-HW security appliance is commonly used in branch office networks, retail stores, small business environments, and remote office deployments where integrated firewall protection, VPN connectivity, and wireless networking are required. It is typically installed at network gateways to manage internet traffic, protect internal networks from cyber threats, and provide secure wireless connectivity for employees and business devices while allowing administrators to monitor and control the network through centralized cloud management.

Technical Specifications:

• Manufacturer: Cisco Meraki
• Manufacturer Part Number (MPN): MX60W-HW
• Product Type: Cloud Managed Security Appliance with Wireless
• Firewall Throughput: Up to 50 Mbps
• VPN Throughput: Up to 20 Mbps
• Recommended Client Support: Up to 25 devices
• Ethernet Ports: 5 × 10/100/1000 Gigabit Ethernet ports
• Wireless Standard: IEEE 802.11a/b/g/n
• Wireless Frequency Bands: 2.4 GHz and 5 GHz dual-band
• Antennas: Integrated internal antennas
• Management Platform: Cisco Meraki cloud management dashboard
• Security Features: Stateful firewall, content filtering, intrusion prevention, VPN support
• VPN Support: Auto VPN, site-to-site VPN, client VPN
• Power Supply: External power adapter
• Mounting Options: Desktop or wall mount
• Operating Temperature Range: 0°C to 40°C

Common Replacements:

• Cisco Meraki MX64W-HW Cloud Managed Security Appliance
• Cisco Meraki MX67W-HW Cloud Managed Security Appliance
• Cisco Meraki MX68W-HW Cloud Managed Security Appliance
