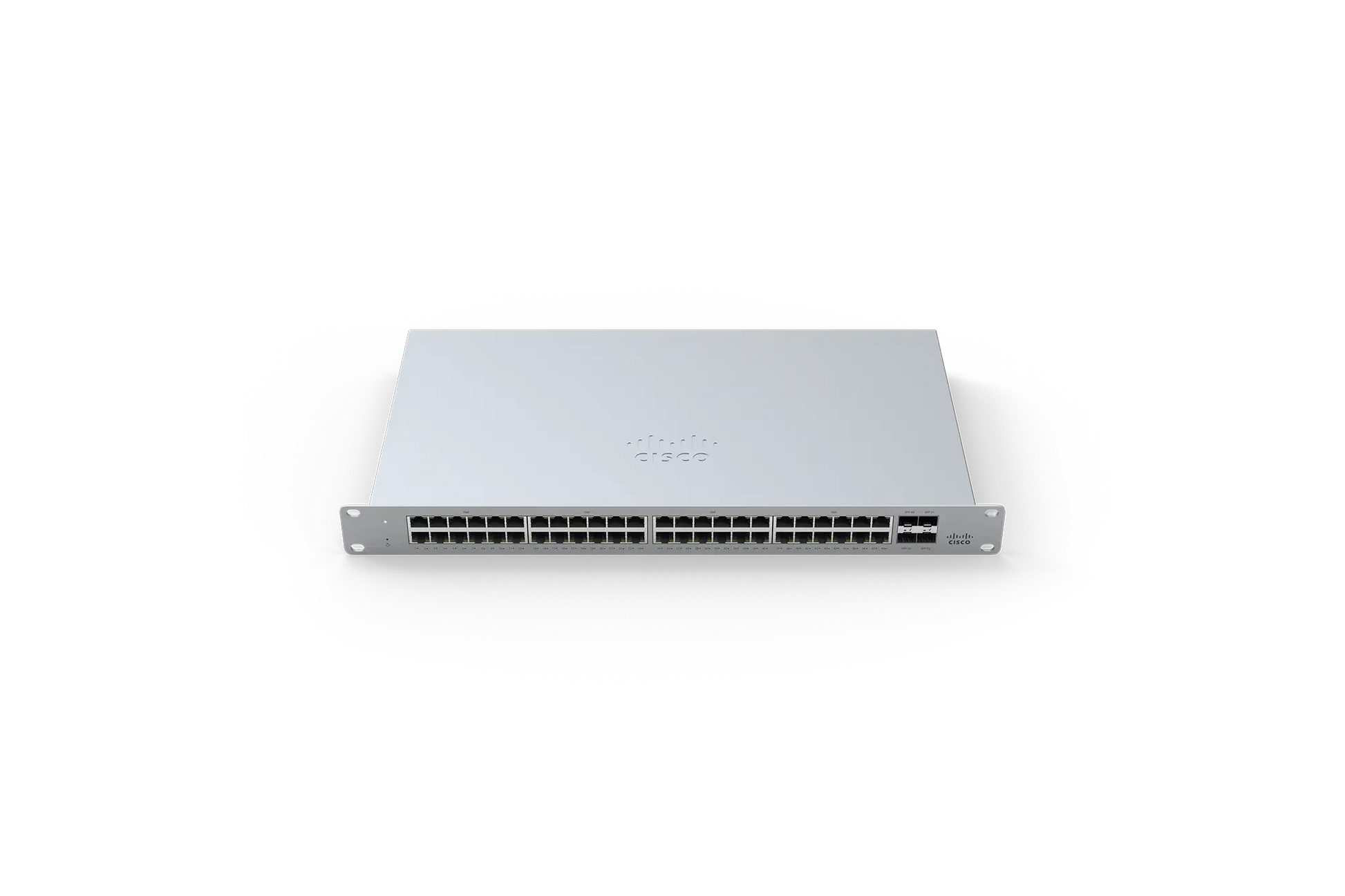

Cisco MS120-48FP-HW MERAKI CLOUD MANAGED SWITCH MS12048FPHW

Description:

The Cisco MS120-48FP-HW Meraki Cloud Managed Switch is used in enterprise and business network infrastructures to provide centralized cloud-managed switching with Power over Ethernet Plus support for connected devices. It delivers reliable Layer 2 switching, remote cloud-based management, and secure network connectivity designed for modern distributed network environments. Commonly installed in corporate offices, retail stores, educational institutions, and enterprise branch networks, this switch enables reliable connectivity and power delivery for devices such as wireless access points, IP phones, and security cameras. Maintenance teams, IT administrators, and system integrators use this switch for network deployment, infrastructure expansion, replacement of legacy switches, and implementation of scalable cloud-managed networking solutions.

Applications:

The Cisco MS120-48FP-HW switch is used in enterprise and business network environments where centralized cloud management and PoE+ connectivity are required. It is commonly deployed in office buildings, retail networks, schools, and distributed enterprise locations to provide network connectivity and power for wireless access points, IP telephones, surveillance cameras, and other PoE-enabled devices while allowing remote monitoring and configuration through the Meraki cloud management platform.

Technical Specifications:

• Manufacturer Part Number (MPN): MS120-48FP-HW
• Brand: Cisco Meraki
• Product Type: Cloud Managed Ethernet Switch
• Series: Meraki MS120 Series
• Total Ports: 48 × 10/100/1000 Gigabit Ethernet PoE+ ports
• Uplink Ports: 4 × Gigabit SFP uplink ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at PoE+
• PoE Budget: Up to 740 W
• Management Platform: Cisco Meraki Cloud Dashboard
• Switching Capacity: Up to 104 Gbps
• Forwarding Rate: Up to 77 Mpps
• Mounting Type: Rack Mount
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at

Common Replacements:

• Cisco Meraki MS125-48FP-HW Cloud Managed Switch
• Cisco Meraki MS225-48FP-HW Cloud Managed Switch
• Cisco Meraki MS120-48LP-HW Cloud Managed Switch
