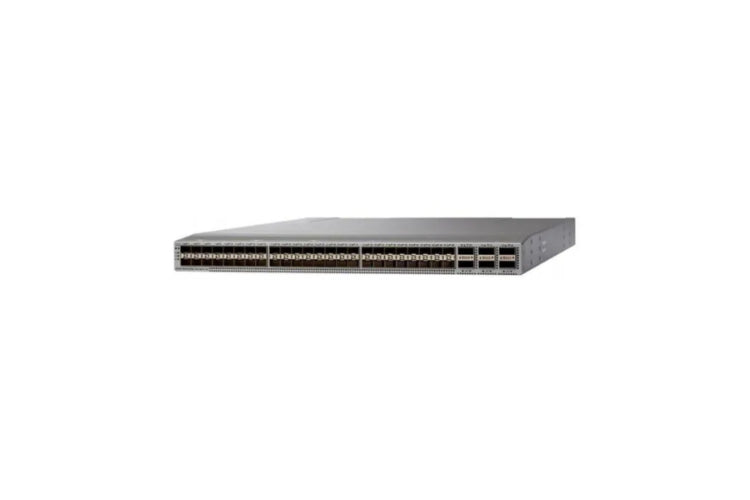

Cisco N9K-C93180YC-EX 48 Port Switch 2x P.S. 4x Fans Rear to Front Airflow N9KC93180YCEX

Description:

The Cisco N9K-C93180YC-EX is a high-performance, fixed-port switch from the Nexus 9300-EX series, built for modern data center and cloud-scale network environments. It delivers 48 ports of 1/10/25-Gigabit Ethernet and 6 ports of 40/100-Gigabit Ethernet in a compact 1RU form factor. Powered by Cisco’s Cloud Scale ASIC, it supports VXLAN, EVPN, advanced telemetry, micro-segmentation, and high programmability. The N9K-C93180YC-EX is ideal for top-of-rack (ToR) and leaf layer deployments in enterprise and service provider networks requiring scalable, low-latency, and high-bandwidth switching.

TECHNICAL SPECIFICATIONS:

Model: N9K-C93180YC-EX
Series: Nexus 9300-EX
Port Configuration: 48 x 1/10/25G SFP28, 6 x 40/100G QSFP28
Switching Capacity: 3.6 Tbps
Forwarding Rate: 2.6 Bpps
Form Factor: 1RU rack-mountable
Power Supply: Dual redundant (AC or DC)
Cooling: Front-to-back or back-to-front airflow with hot-swappable fans
Management: Cisco NX-OS, CLI, SNMP, REST API
Features: VXLAN, EVPN, PTP, micro-segmentation, streaming telemetry
MAC Address Table: Up to 288,000 entries
VLANs Supported: 4,000
Jumbo Frame Support: Up to 9216 bytes
Typical Power Consumption: ~250W
Dimensions: 1.72" (H) x 17.3" (W) x 22.6" (D)
Weight: Approx. 20 lbs (9.1 kg)
