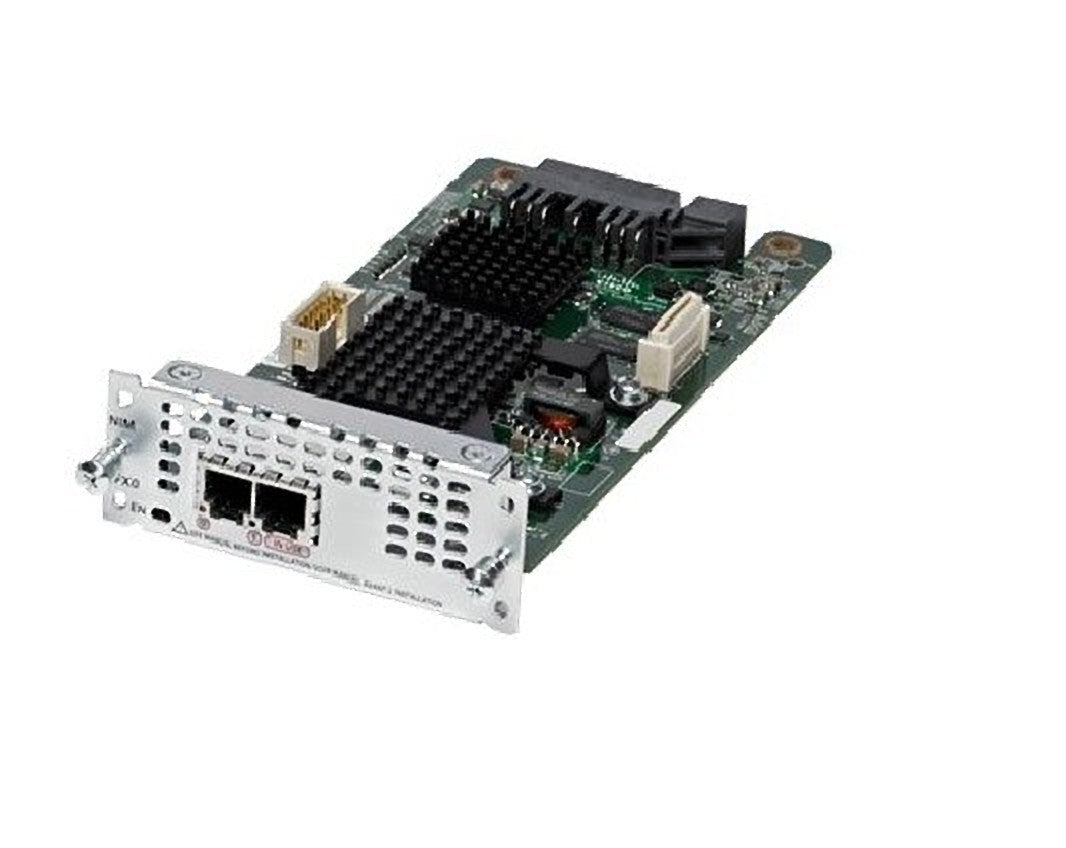

Cisco NIM-1CE1T1-PRI 1-Port Multi-flex Trunk Voice/Channelized T1/E1 Module HSS NIM1CE1T1PRI

Description:

The Cisco NIM-1CE1T1-PRI Network Interface Module is used in Cisco Integrated Services Routers to provide channelized T1/E1 trunk connectivity for voice and data communications in enterprise and service provider networks. This multi-flex trunk module supports PRI (Primary Rate Interface) and channelized voice connections, enabling integration between IP-based communication systems and traditional TDM telephony infrastructure. Installed in the NIM slot of compatible Cisco ISR platforms, the module allows routers to function as voice gateways that connect IP telephony systems to PSTN or legacy PBX networks. It supports flexible configuration for both T1 and E1 network standards, making it suitable for deployments across different regional telecommunications infrastructures. The module provides reliable digital trunk connectivity while supporting voice and data traffic integration within a single router platform. Telecom engineers, network administrators, and system integrators commonly deploy this module for voice gateway installations, PSTN connectivity, telephony system upgrades, and replacement of existing digital trunk interface modules.

Applications:

The Cisco NIM-1CE1T1-PRI module is widely used in enterprise and service provider environments where IP telephony systems must connect to traditional telephone networks. It is commonly installed in Cisco ISR routers to enable voice gateway functionality for connecting VoIP systems to PSTN services using PRI or channelized T1/E1 connections. Typical deployments include corporate offices, call centers, telecommunications networks, and distributed enterprise locations where reliable voice trunk connectivity is required for unified communications infrastructure.

Technical Specifications:

• Brand: Cisco
• Part Number: NIM-1CE1T1-PRI
• Model Number: NIM1CE1T1PRI
• Product Type: Multi-flex Trunk Voice/Channelized T1/E1 Network Interface Module
• Interface Ports: 1 × T1/E1 trunk port
• Interface Type: Channelized T1/E1 with PRI support
• Connector Type: RJ-48C
• Compatibility: Cisco Integrated Services Routers (ISR) with NIM slot
• Supported Protocols: T1, E1, PRI voice trunking
• Function: Voice gateway trunk connectivity
• Installation Type: NIM slot installation in router chassis
• Management: Configured through Cisco IOS software
• Deployment Environment: Enterprise voice gateways and telecom networks

Common Replacements:

• Cisco NIM-2CE1T1-PRI Multi-flex Trunk Module
• Cisco VWIC3-1MFT-T1/E1 Voice Interface Card
• Cisco NIM-4MFT-T1/E1 Multi-flex Trunk Module
