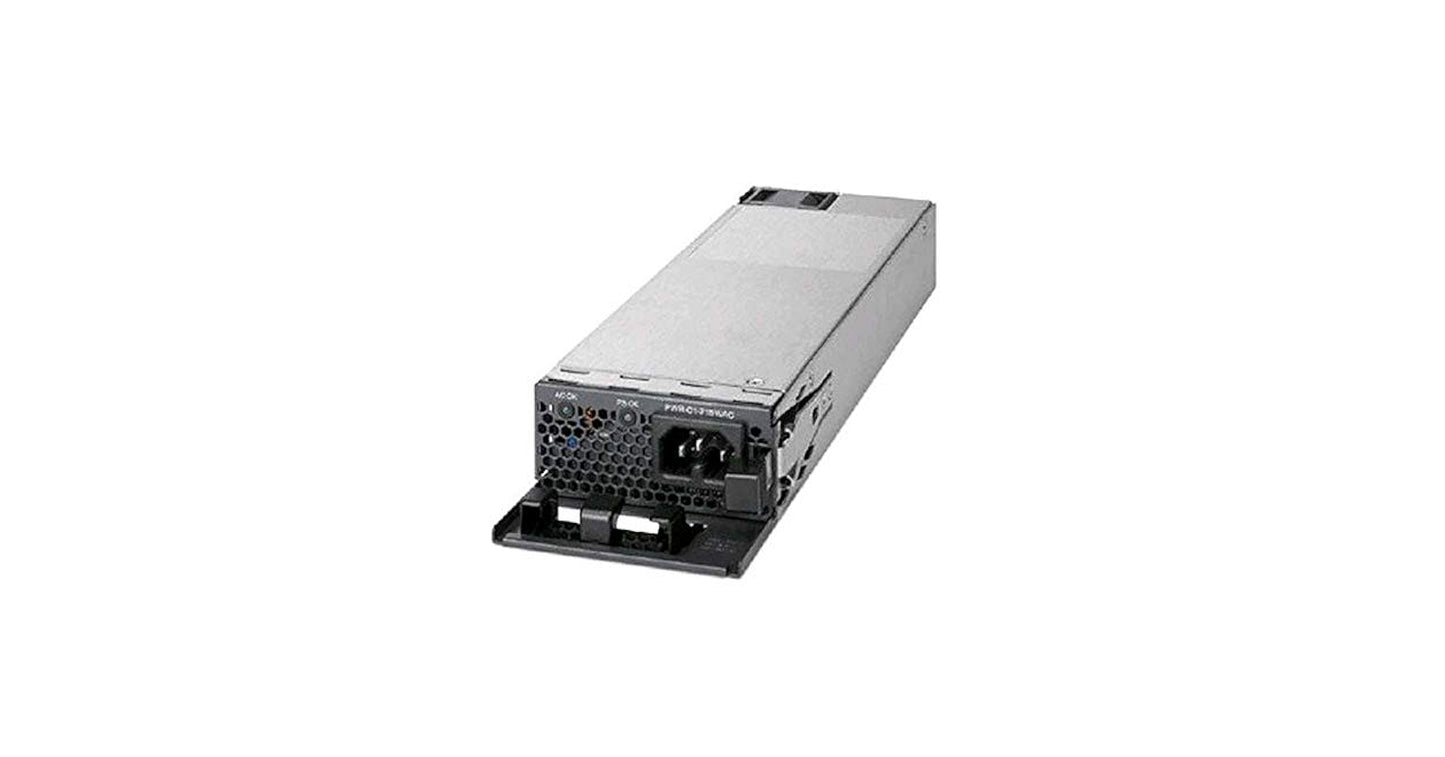

Cisco PWR-C1-715WAC-P Power Supply for 9300 Series Switch PWRC1715WACP

Description:

The Cisco PWR-C1-715WAC-P is a 715-watt AC power supply designed for Cisco Catalyst 9300 Series switches. It is a hot-swappable, high-efficiency unit with Platinum-level energy efficiency. This power supply supports redundancy and is ideal for enterprise networking environments requiring reliable power delivery.

TECHNICAL SPECIFICATIONS:

Manufacturer: Cisco
Model Number: PWR-C1-715WAC-P
Power Output: 715 W
Efficiency Rating: 80 Plus Platinum
Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
Input Current: 10–5 A
Output Voltage: -56 V DC
Output Current: 12.8 A
Hold-up Time: ≥ 16.7 ms at 100 VAC
Connector Type: IEC 320-C16
Cooling: Internal fan, self-cooled
Hot-Swappable: Yes
Thermal Output: Approx. 2465 BTU/hr
Acoustic Noise: 45–48 dB
Dimensions (H x W x D): 1.58 x 3.25 x 12.20 in (40 x 83 x 310 mm)
