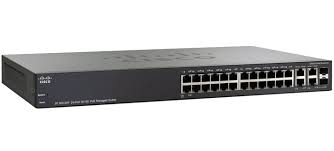

Cisco SF300-24PP-K9 24-Port 10/100 PoE+ Managed Switch SF30024PPK9

Description:

The Cisco SF300-24PP-K9 24-Port 10/100 PoE+ Managed Switch (SF30024PPK9) is used in small business and enterprise network infrastructures to provide managed Ethernet switching and Power over Ethernet connectivity for networked devices. Commonly installed in office network closets, retail environments, hospitality facilities, and small enterprise IT infrastructures where reliable wired connectivity for IP phones, wireless access points, and surveillance cameras is required. Network administrators, IT maintenance teams, and system integrators use this switch for network expansion, infrastructure upgrades, and replacement of legacy small business managed switches in commercial network environments.

Applications:

The Cisco SF300-24PP-K9 switch is used in small business and enterprise access-layer networks where reliable Ethernet switching and PoE device connectivity are required. It is commonly deployed in corporate offices, retail stores, hospitality venues, and educational facilities to connect computers, VoIP phones, wireless access points, and IP surveillance cameras. The switch supports managed network features such as VLAN configuration, traffic prioritization, and secure network access, helping organizations maintain stable and efficient network communication.

Technical Specifications:

• Manufacturer Part Number (MPN): SF300-24PP-K9
• Product Type: Managed Ethernet Switch with PoE+
• Series: Cisco Small Business 300 Series
• Total Ethernet Ports: 24 × 10/100 Fast Ethernet ports
• PoE Standard: IEEE 802.3af / IEEE 802.3at PoE+
• PoE Power Budget: Up to 180 W
• Uplink Ports: 2 × Gigabit Ethernet combo ports (RJ45/SFP)
• Switching Capacity: Up to 12.8 Gbps
• Forwarding Rate: Up to 9.5 Mpps
• Network Layer Support: Layer 2 switching with limited Layer 3 features
• Management Interfaces: Web-based GUI, CLI, SNMP
• Security Features: Access control lists (ACL), port security, 802.1X authentication
• Power Supply: Internal AC power supply
• Mounting Type: Rack-mountable (1U)
• Operating Temperature: 0°C to 40°C
• Typical Installation: Small business networks, office IT closets, and commercial network infrastructures

Common Replacements:

• Cisco CBS350-24P-4G Managed Switch
• Cisco Catalyst C1000-24P-4G-L Network Switch
• Cisco SG350-28P Managed Switch
