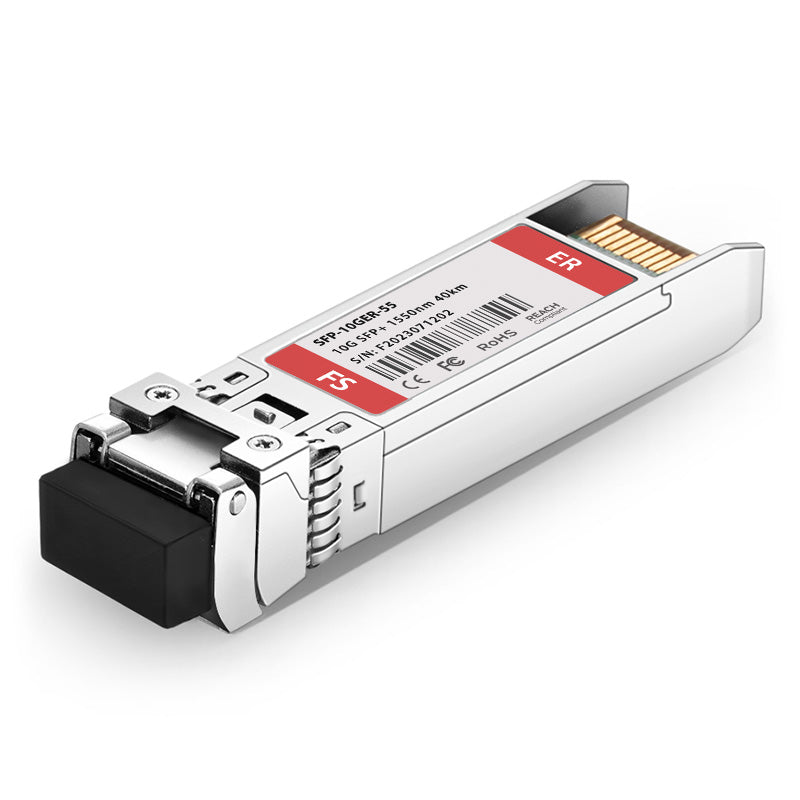

Cisco SFP-10G-ER 10GBASE-ER 1310nm 40KM SFP+ TRANSCEIVER Module SFP10GER

Description:

The Cisco SFP-10G-ER is a high-performance SFP+ transceiver module designed for long-distance 10 Gigabit Ethernet connectivity over single-mode fiber. It operates at a wavelength of 1550 nm and supports a transmission range of up to 40 kilometers, making it ideal for service provider and enterprise networking environments that require extended reach. The module is hot-swappable and integrates Digital Optical Monitoring (DOM) for real-time diagnostics of optical parameters.

Technical Specifications:

Manufacturer: Cisco Systems
Model Number: SFP-10G-ER
Transceiver Type: 10GBASE-ER SFP+
Wavelength: 1550 nm
Data Rate: 10 Gbps
Connector Type: LC duplex
Fiber Type: Single-mode fiber (SMF)
Max Distance: Up to 40 km
Transmit Power: –4.7 to +4.0 dBm
Receive Sensitivity: –15.8 dBm
Digital Diagnostics: Yes (DOM support)
Hot-Swappable: Yes
Power Consumption: ≤ 1.5W
Temperature Range: 0°C to 70°C (32°F to 158°F)
Standards Compliance: IEEE 802.3ae, SFF-8431, RoHS
Form Factor: SFP+
Dimensions: 2.2 x 0.5 x 0.3 in (56.5 x 13.4 x 8.5 mm)
Weight: Approx. 0.02 lbs (9 g)
