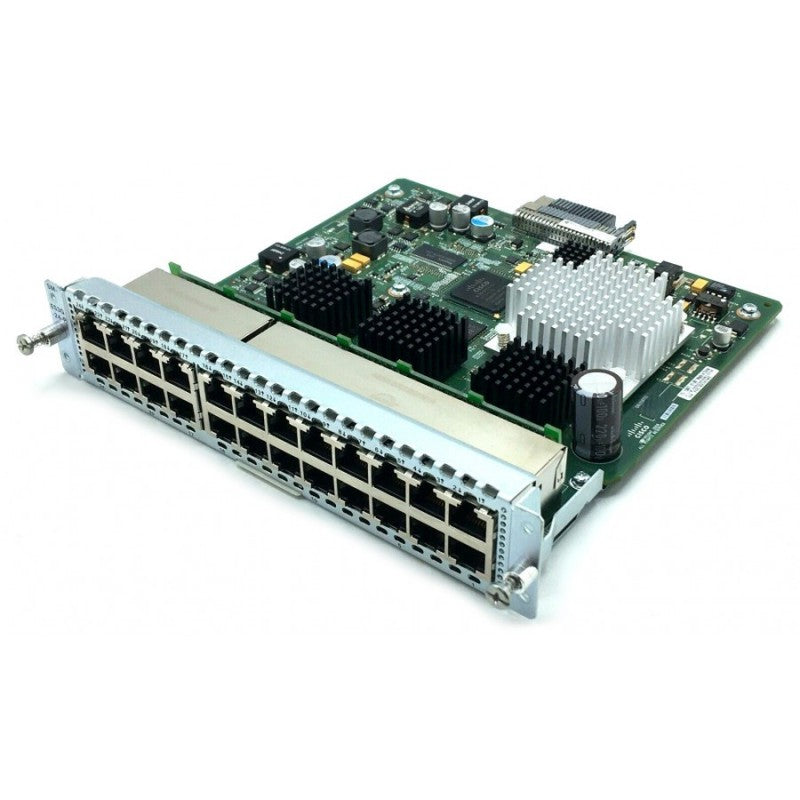

Cisco SM-ES3G-24-P 24-Port GbE POE+ Capable Layer 2/3 LAN SM-X Ether Switch KAJ SMES3G24P

DESCRIPTION:
The Cisco SM-ES3G-24-P is a 24-port Gigabit Enhanced EtherSwitch Service Module designed to expand switching capabilities within Cisco Integrated Services Routers Generation 2 (ISR G2), such as the 2900 and 3900 Series. This module integrates Layer 2/3 Ethernet switching directly into the router, reducing the need for external switches and simplifying network infrastructure. It supports Power over Ethernet (PoE), making it ideal for powering IP phones, wireless access points, and other PoE devices.

TECHNICAL SPECIFICATIONS:
Manufacturer: Cisco Systems
Model Number: SM-ES3G-24-P
Form Factor: Enhanced service module (internal to router chassis)
Port Count: 24 x 10/100/1000 Gigabit Ethernet ports
PoE Support: IEEE 802.3af (PoE) and 802.3at (PoE+) capable
Switching Capacity: 48 Gbps
MAC Address Table: Up to 16,000 entries
Layer Support: Layer 2 and Layer 3 switching
VLAN Support: Up to 1,000 VLANs
QoS: Advanced QoS features for traffic prioritization
Management: CLI, SNMP, Cisco Prime, web-based tools
Security Features: Port security, DHCP snooping, dynamic ARP inspection, and ACLs
Power Requirements: Draws base power from the router; requires external power source (e.g., Cisco RPS or inline power supply) for full PoE output
Compatible Routers: Cisco 2900 and 3900 Series ISR G2 routers
