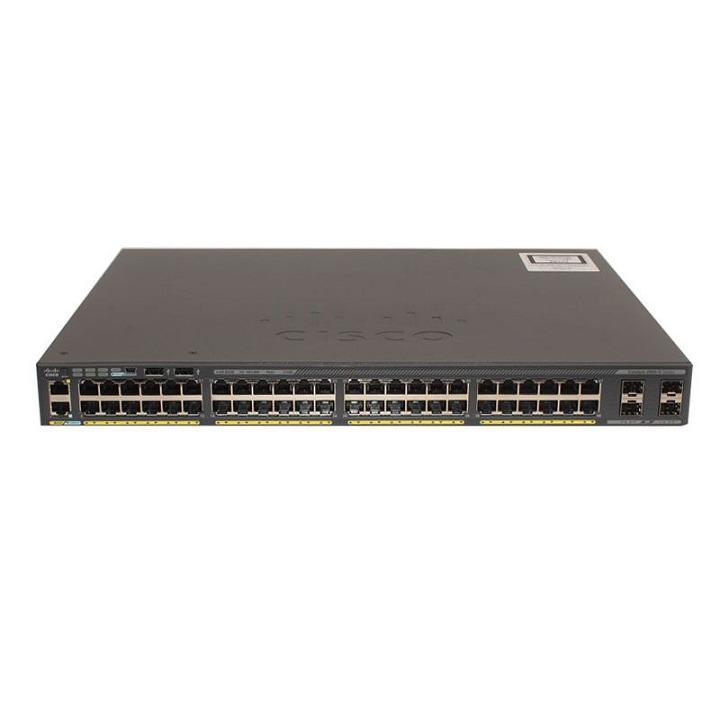

Cisco WS-C2960X-48LPS-L 2960-X 48 GigE PoE LAN Base Switch WSC2960X48LPSL

Description:

The Cisco WS-C2960X-48LPS-L is a reliable and scalable Layer 2 network switch from the Catalyst 2960-X Series, designed for enterprise access deployments. It features 48 Gigabit Ethernet ports with PoE+ support and 4 integrated SFP uplink slots, providing both power and high-speed connectivity for IP phones, wireless access points, and other network devices. With Cisco’s LAN Base software, the switch supports robust security, quality of service (QoS), and energy-efficient Ethernet features. It is ideal for medium to large enterprise networks needing dependable and manageable PoE+ capabilities.

TECHNICAL SPECIFICATIONS:

Model: WS-C2960X-48LPS-L
Series: Cisco Catalyst 2960-X
Total Ports: 48 x 10/100/1000 Ethernet ports
PoE Support: PoE+ (up to 370W total PoE budget)
Uplink Ports: 4 x 1G SFP
Switching Capacity: 216 Gbps
Forwarding Rate: 107.1 Mpps
Software Image: LAN Base
MAC Address Table: 16,000 entries
Stacking: Optional FlexStack-Plus (module sold separately)
Flash Memory: 128 MB
DRAM: 512 MB
Power Supply: Fixed internal, field-replaceable
Dimensions: 1.75 in x 17.5 in x 11.8 in (H x W x D)
Weight: Approx. 11.5 lbs (5.2 kg)
