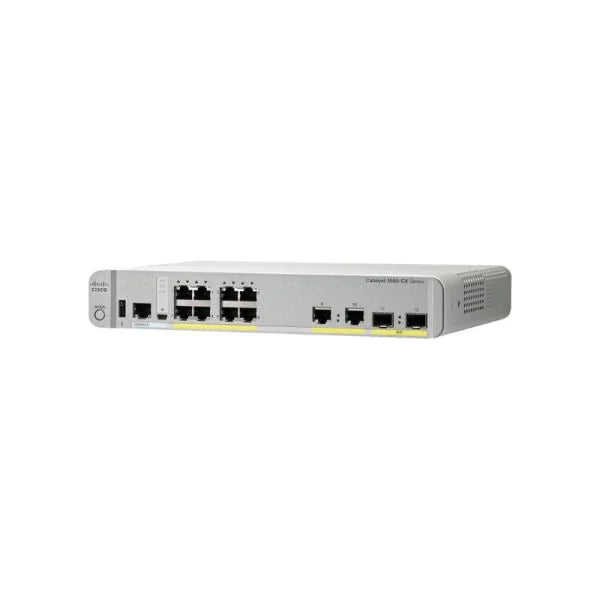

Cisco WS-C3560CX-8PC-S 8-Port PoE Compact Switch WSC3560CX8PCS

Description:

The Cisco WS-C3560CX-8PC-S Compact Switch is an 8-port Gigabit Ethernet PoE switch used in enterprise network systems for space-constrained deployments requiring reliable connectivity and power delivery. Commonly installed in offices, retail environments, classrooms, and industrial enclosures where compact form factor and PoE capability are required. Maintenance teams and system integrators use this switch for network expansion, upgrades, and replacement of legacy compact switches to improve flexibility and performance.

Applications:

The Cisco WS-C3560CX-8PC-S switch is widely used in enterprise and commercial networking environments where small form factor and PoE functionality are essential. It is deployed in retail stores, hospitality venues, branch offices, and workspaces to support devices such as IP phones, wireless access points, surveillance cameras, and point-of-sale systems. Its compact design allows for installation in tight spaces such as under desks, wall mounts, or small wiring closets while maintaining enterprise-grade switching performance.

Technical Specifications:

• Manufacturer: Cisco
• Model / Part Number: WS-C3560CX-8PC-S
• Alternate Part Number: WSC3560CX8PCS
• Product Type: Managed Compact Ethernet Switch
• Ports: 8x Gigabit Ethernet RJ-45 (PoE)
• Uplink Ports: 2x 1 Gigabit SFP
• PoE Standard: IEEE 802.3af/at (PoE+)
• PoE Power Budget: Up to 240 Watts
• Switching Capacity: Up to 20 Gbps
• Forwarding Rate: Up to 14.88 Mpps
• Layer Support: Layer 2 / Layer 3 Lite (IP Base)
• Management: CLI, SNMP, Web UI
• VLAN Support: Yes
• Security Features: ACLs, 802.1X, port security
• Power Supply: Internal AC
• Mounting: Desktop, wall, or rack-mountable (compact form factor)

Common Replacements:

• Cisco C9200CX-8P-2X2G
• Cisco WS-C3560CX-12PC-S
• Cisco CBS350-8P-E-2G
