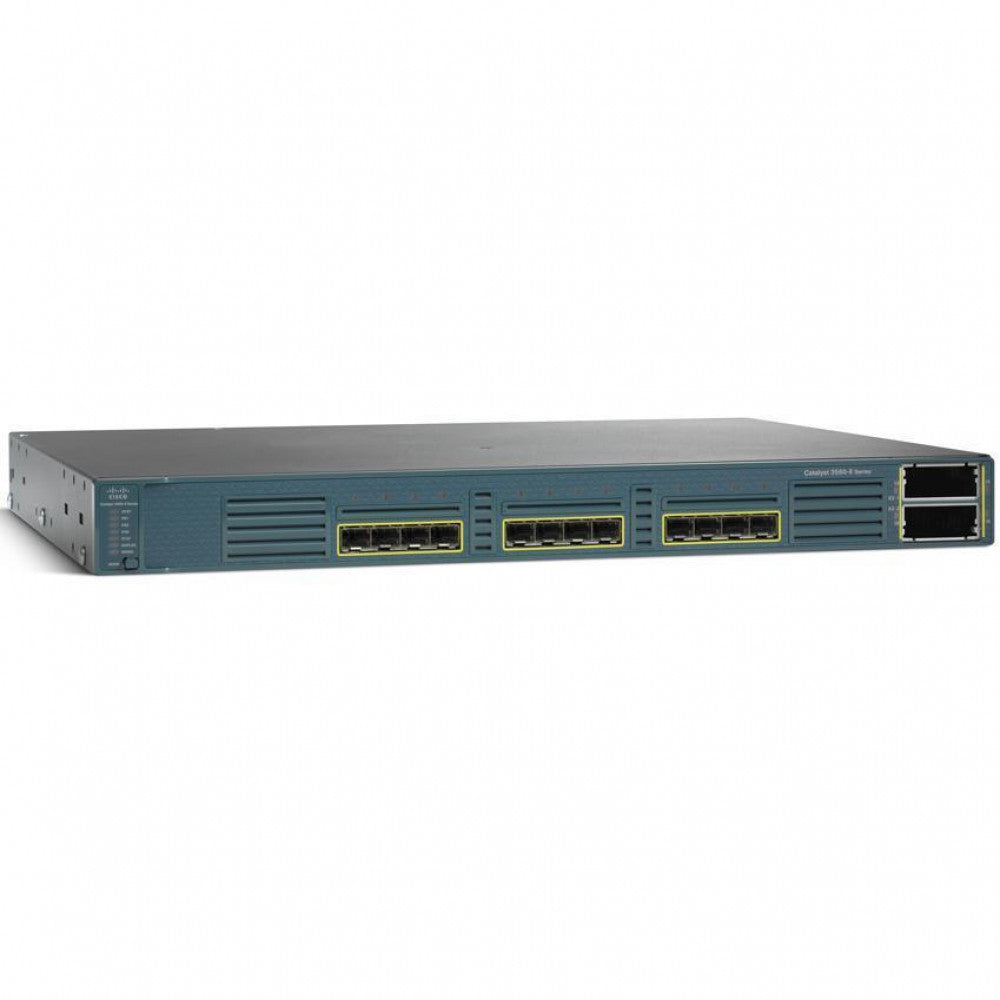

Cisco WS-C3560E-12SD-E 12 Port SFP Giga Layer 3 Switch 10G ipservices 3560E-12SD

Description:

The Cisco WS-C3560E-12SD-E Catalyst 3560E 12-Port SFP Gigabit Switch is used in enterprise network infrastructures to provide high-performance Layer 3 switching with fiber-based Gigabit Ethernet connectivity and 10 Gigabit uplink capability. Commonly installed in data centers, enterprise distribution layers, campus networks, and fiber-based network backbones where high-speed switching and advanced routing features are required. Network engineers and IT infrastructure teams use this switch for fiber network aggregation, infrastructure upgrades, and replacement of legacy distribution switches to maintain scalable and reliable enterprise network connectivity.

Applications:

The Cisco WS-C3560E-12SD-E switch is designed for enterprise environments that rely on fiber optic network connectivity and advanced Layer 3 routing capabilities. It is widely used in data center aggregation layers, campus distribution networks, and enterprise backbone deployments where multiple fiber links must be connected to high-speed switching infrastructure. The switch supports advanced routing protocols, high-speed uplinks, and network segmentation features, enabling organizations to efficiently manage large volumes of network traffic while maintaining reliable communication between network segments.

Technical Specifications:

• Manufacturer Part Number (MPN): WS-C3560E-12SD-E
• Product Type: Managed Layer 3 Ethernet Switch
• Series: Cisco Catalyst 3560-E Series
• Total Ports: 12 × Gigabit Ethernet SFP ports
• Port Type: Fiber-based Gigabit Ethernet (SFP)
• Uplink Ports: 2 × 10 Gigabit Ethernet X2 uplink ports
• Switching Capacity: Up to 160 Gbps
• Forwarding Rate: Up to 65.5 Mpps
• Network Layer Support: Layer 2 and Layer 3 switching
• Operating System: Cisco IOS IP Services
• Routing Protocols: OSPF, EIGRP, BGP, RIP supported
• Management Interfaces: CLI, SNMP, Web-based management
• Mounting Type: Rack-mountable (1U)
• Power Supply: Internal AC power supply
• Operating Temperature Range: 0 °C to 45 °C

Common Replacements:

• Cisco WS-C3850-12S-S Catalyst 3850 Switch
• Cisco C9300-24S-A Catalyst 9300 Switch
• Cisco WS-C3650-12X48UR Catalyst 3650 Switch
