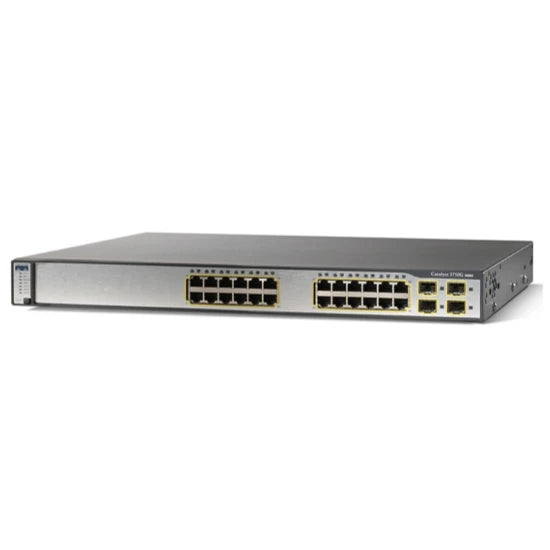

Cisco WS-C3750G-24TS-S1U 24 Gigabit Port Layer 3 Switch WSC3750G24TSS1U

Description:

The Cisco WS-C3750G-24TS-S1U Gigabit Ethernet Switch is used in enterprise network infrastructures to provide Layer 3 managed switching with high-speed Gigabit connectivity and advanced routing capabilities. Commonly installed in corporate campus networks, IT wiring closets, and distribution layer network environments requiring scalable and reliable switching performance. Maintenance teams and system integrators use this part for network expansion, infrastructure upgrades, system retrofits, or replacement of existing Cisco Catalyst switching hardware.

Applications:

The Cisco WS-C3750G-24TS-S1U switch is used in enterprise and industrial networking environments where high-performance Layer 3 switching and Gigabit Ethernet connectivity are required. It is commonly deployed in corporate offices, educational campuses, data center access layers, and manufacturing facilities to connect servers, workstations, wireless access points, and network infrastructure devices while supporting VLAN segmentation, traffic control, and efficient data routing across the network.

Technical Specifications:

• Manufacturer: Cisco
• Model: WS-C3750G-24TS-S1U
• Product Type: Managed Gigabit Ethernet Switch
• Series: Cisco Catalyst 3750G Series
• Total Ports: 24 x 10/100/1000 Gigabit Ethernet ports
• Uplink Interfaces: 4 x SFP fiber ports
• Layer Support: Layer 3 switching
• Feature Set: IP Base
• Switching Capacity: 32 Gbps
• Forwarding Rate: Up to 38.7 Mpps
• Stacking Technology: Cisco StackWise support
• Stack Bandwidth: Up to 32 Gbps
• Form Factor: 1U rack-mountable chassis
• Power Supply: Internal AC power supply

Common Replacements:

• Cisco WS-C3750X-24T-S
• Cisco WS-C3560X-24T-S
• Cisco WS-C2960X-24TS-L
