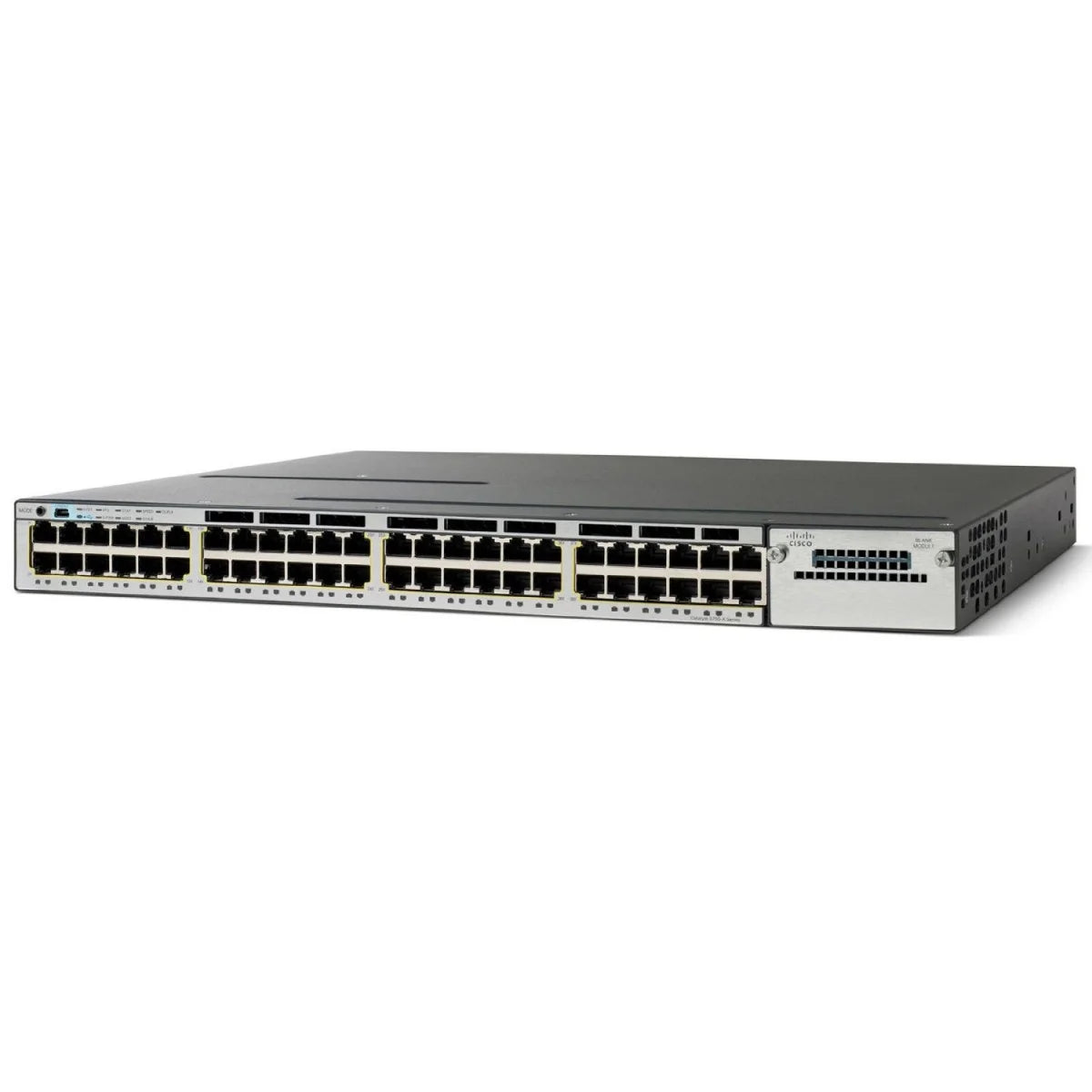

Cisco WS-C3750X-48P-L • 48-Port PoE+ Gigabit Switch 2xC3KX-PWR-715WAC DUAL POWER WSC3750X48PL

Description:

The Cisco WS-C3750X-48P-L Catalyst 3750X 48-Port PoE+ Gigabit Switch is used in enterprise network switching systems to provide high-performance Layer 2 and Layer 3 switching with Power over Ethernet for connected devices. Commonly installed in corporate campus networks, enterprise access layers, and industrial network infrastructures where centralized switching and PoE power delivery are required for multiple Ethernet devices. Maintenance teams, network administrators, and system integrators use this switch for network expansion, infrastructure upgrades, device connectivity deployment, and replacement of legacy access layer switches in enterprise environments.

Applications:

The Cisco WS-C3750X-48P-L switch is deployed in enterprise access and distribution networks to connect workstations, wireless access points, IP phones, and security cameras while delivering PoE+ power through Ethernet cabling. It is commonly used in corporate offices, educational institutions, healthcare facilities, and large business environments where organizations require reliable Gigabit Ethernet connectivity, advanced switching features, and scalable network infrastructure.

Technical Specifications:

• Manufacturer Part Number (MPN): WS-C3750X-48P-L
• Product Type: Managed Gigabit Ethernet Switch
• Series: Cisco Catalyst 3750X
• Total Ports: 48 × 10/100/1000 Gigabit Ethernet ports
• PoE Standard: IEEE 802.3at PoE+
• PoE Power Budget: Up to 800 W (depending on power supply configuration)
• Power Supply: 2 × C3KX-PWR-715WAC AC power supplies (dual redundant)
• Switching Capacity: Up to 160 Gbps
• Forwarding Rate: Up to 101.2 Mpps
• Layer Support: Layer 2 and Layer 3 switching with LAN Base software
• Stacking Technology: Cisco StackWise Plus support
• Form Factor: 1U rack-mountable switch

Common Replacements:

• Cisco Catalyst C9300-48P-E 48-Port PoE+ Switch
• Cisco Catalyst C9200-48P-A 48-Port PoE+ Switch
• Cisco Catalyst WS-C3850-48P-S 48-Port PoE+ Switch
