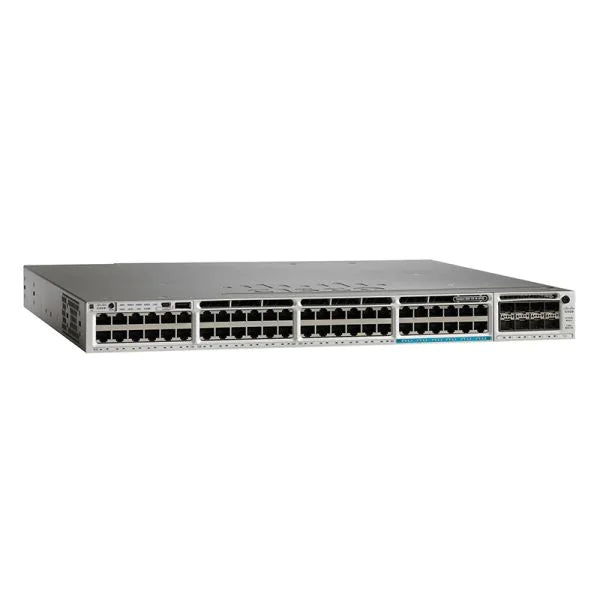

Cisco WS-C3850-12X48U-L Switch 48Port Gigabit PoE With C3850-NM-4-10G Single PWR

Description:

The Cisco WS-C3850-12X48U-L Catalyst 3850 Switch with C3850-NM-4-10G network module and single power supply is used in enterprise network infrastructures to provide high-performance Layer 3 switching with Universal Power over Ethernet (UPOE) support. It delivers advanced switching features, integrated wireless controller capabilities, and high-speed uplink connectivity for modern campus and enterprise access networks. Commonly installed in corporate LAN environments, campus networks, enterprise IT infrastructures, and data communication closets, this switch enables reliable connectivity for devices such as IP phones, wireless access points, security cameras, and other network equipment. Maintenance teams, network administrators, and system integrators use this switch for network expansion, infrastructure upgrades, replacement of legacy switching equipment, and deployment of scalable enterprise access-layer networks.

Applications:

The Cisco WS-C3850-12X48U-L switch is used in enterprise and campus network environments where high-density PoE connectivity and high-speed uplink performance are required. It is commonly deployed in corporate offices, educational institutions, healthcare facilities, and enterprise IT infrastructures to power and connect devices such as wireless access points, IP telephones, surveillance cameras, and other PoE-enabled network equipment.

Technical Specifications:

• Manufacturer Part Number (MPN): WS-C3850-12X48U-L
• Brand: Cisco
• Product Type: Managed Ethernet Switch
• Series: Cisco Catalyst 3850 Series
• Total Ports: 48 × 10/100/1000 Gigabit Ethernet UPOE ports
• PoE Standard: IEEE 802.3af / 802.3at / Cisco UPOE
• Maximum PoE Budget: Up to 1440 W (depending on power supply configuration)
• Network Module: C3850-NM-4-10G (4 × 10 Gigabit SFP+ uplink ports)
• Layer Support: Layer 2 and Layer 3 switching
• Switching Capacity: Up to 176 Gbps
• Forwarding Rate: Up to 130.95 Mpps
• Operating System: Cisco IOS XE
• Stacking Technology: Cisco StackWise-480
• Power Supply: Single AC power supply installed
• Form Factor: 1U Rack Mount

Common Replacements:

• Cisco C9300-48U-A Catalyst 9300 UPOE Switch
• Cisco WS-C3850-48U-L Catalyst 3850 UPOE Switch
• Cisco C9200L-48P-4X-E Catalyst 9200L PoE+ Switch
