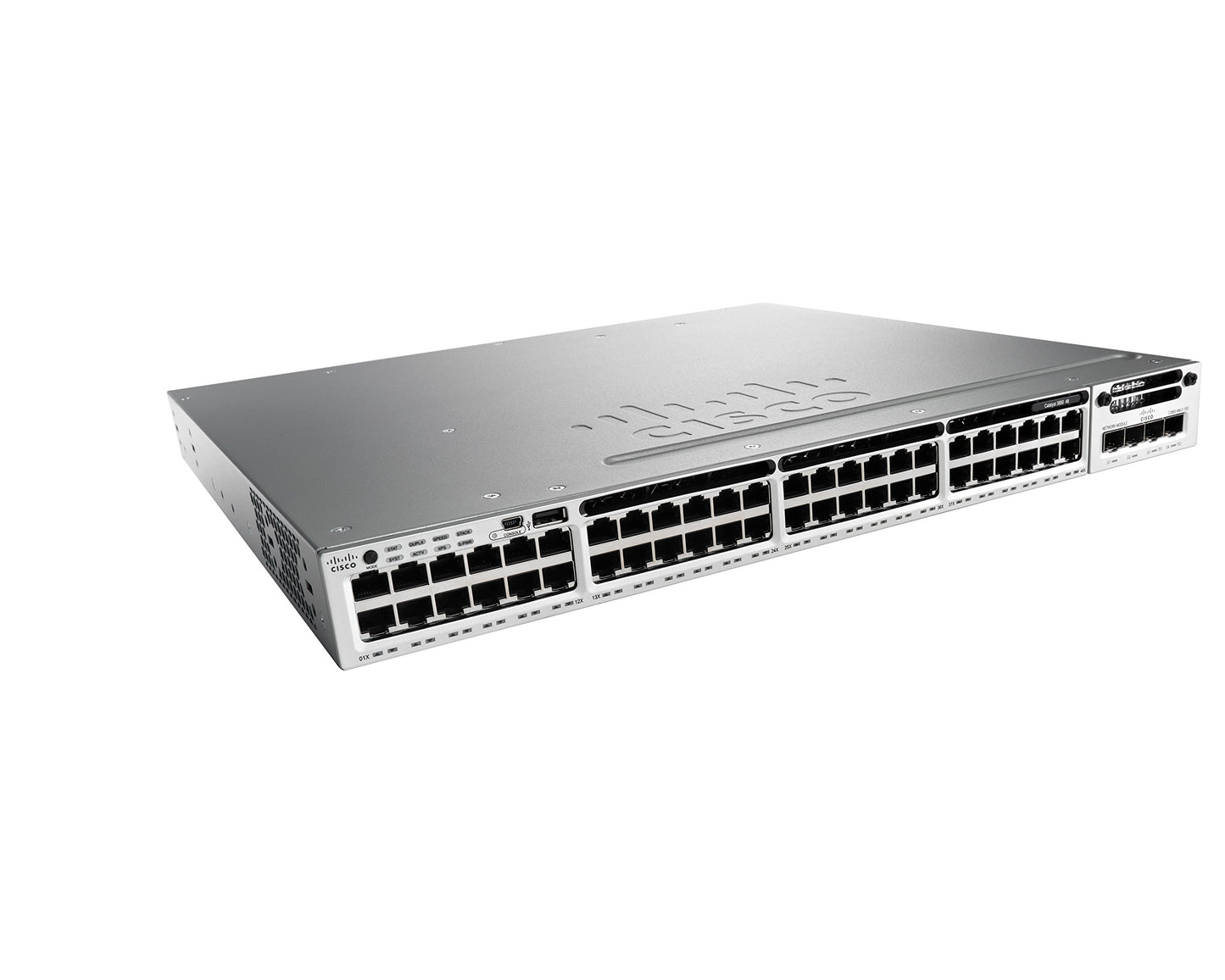

Cisco WS-C3850-48PW-S Cisco Catalyst 3850 48 Port Full PoE WSC385048PWS

Description:

The Cisco WS-C3850-48PW-S is a 48-port Gigabit Ethernet Layer 3 switch with full PoE+ support. It features Cisco's IP Base software and includes stacking capabilities via StackWise-480, offering scalability, high availability, and simplified management. This switch is ideal for enterprise access-layer deployments requiring robust performance and integrated wired and wireless access.

Technical Specifications:

Manufacturer: Cisco Systems
Model Number: WS-C3850-48PW-S
Series: Catalyst 3850
Switch Type: Layer 3 Managed
Downlink Ports: 48 x 10/100/1000 Ethernet with PoE+
PoE Budget: 435W
Uplink Module Slot: 1 (supports 1G or 10G modular uplinks)
Stacking: StackWise-480, up to 9 switches
Stack Bandwidth: 480 Gbps
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
DRAM: 4 GB
Flash Memory: 2 GB
Max VLANs: 1000
MAC Address Table Size: 32,000
Wireless Support: Up to 100 access points and 2,000 wireless clients
Management Interfaces: USB and RJ-45 console ports, Ethernet management port
Form Factor: 1U Rack-mountable
Hot-swappable Components: Yes (power supplies and fans)
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Dimensions: 17.5 in x 17.7 in x 1.75 in (445 mm x 450 mm x 44.5 mm)
Weight: Approximately 17.5 lbs (7.9 kg)
