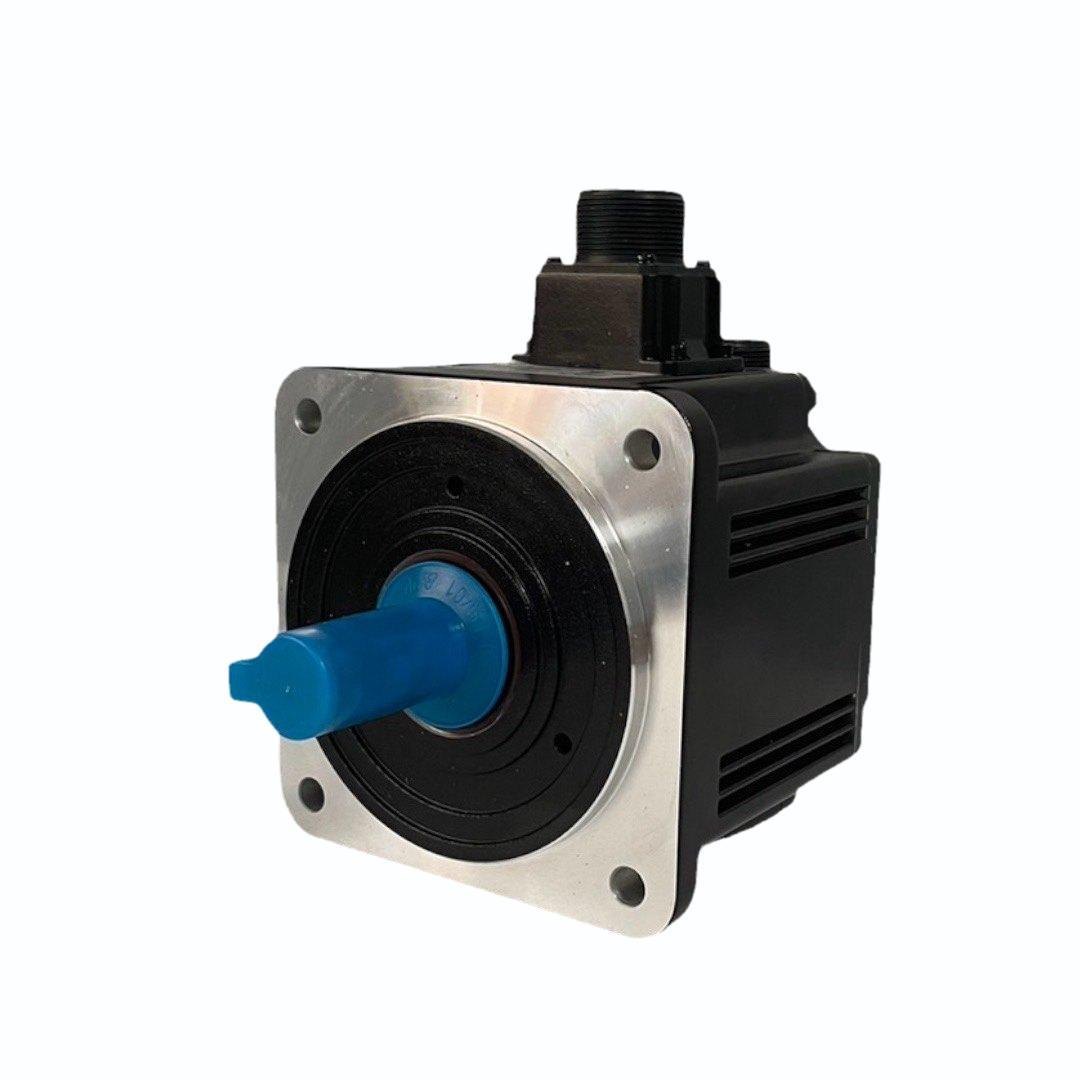

Delta ECMA-E21310RS PLC Servo System Drive Motor ECMAE21310RS

Description:

The Delta ECMA-E21310RS AC Servo Motor is used in PLC-controlled motion systems requiring high-precision positioning and torque control, commonly installed in CNC machines, automated assembly systems, packaging equipment, and robotic applications, and maintenance teams and system integrators use this motor for replacement, system upgrades, or automation retrofits.

Applications:

The Delta ECMA-E21310RS servo motor is used in industrial automation environments where reliable motion control and high torque output are required, commonly applied in CNC machining centers, conveyor automation systems, pick-and-place machines, printing equipment, and robotic arms to ensure accurate positioning, stable performance, and efficient operation in demanding applications.

Technical Specifications:

• Brand: Delta Electronics
• Part Number: ECMA-E21310RS
• Product Type: AC Servo Motor
• Rated Power: 1 kW
• Rated Voltage: 220V AC
• Encoder Type: 17-bit absolute encoder
• Rated Speed: 3000 RPM
• Maximum Speed: Up to 5000 RPM
• Rated Torque: Approximately 3.18 Nm
• Peak Torque: Approximately 9.54 Nm
• Shaft Type: Keyway shaft
• Frame Size: 130 mm
• Protection Class: IP65 (motor body)
• Cooling Method: Natural cooling
• Mounting Type: Flange mount
• Insulation Class: Class F

Common Replacements:

• Delta ECMA-E21310PS AC Servo Motor
• Delta ECMA-E21310SS AC Servo Motor
• Mitsubishi HG-SR102 AC Servo Motor
