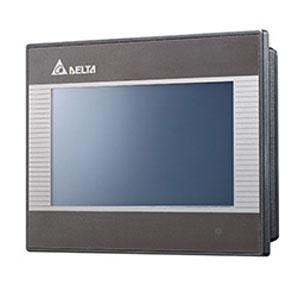

Delta DOP-B07S410 7 Inch 800x480 Programmable Logic HMI Human Machine Interface DOPB07S410

Description:

DOPB07S410  HUMAN MACHINE INTERFACE 24 VDC 250 MA CLASS 2 The DOP-B07S410 is a 7-inch Human-Machine Interface (HMI) designed for efficient and intuitive control in industrial automation environments. It features a high-resolution TFT LCD touchscreen that delivers clear and vibrant visuals, enabling easy interaction and monitoring of machinery and processes. The DOP-B07S410 supports a variety of communication protocols, including RS-232 and RS-485, ensuring flexible integration with diverse PLCs and control systems. Its rugged construction and IP65-rated front panel make it durable and reliable, even in challenging industrial settings.

Technical Specifications:

• Screen Size: 7 inches
• Resolution: 800 x 480 pixels
• Touchscreen Type: TFT LCD, Capacitive
• Communication Ports: 1 x RS-232, 1 x RS-485, 1 x USB
• Power Supply: 24V DC
• Operating Temperature: 0°C to 50°C
• Enclosure Rating: IP65 (front panel)
• Dimensions: 194 x 144 x 36 mm
• Weight: Approximately 0.7 kg
