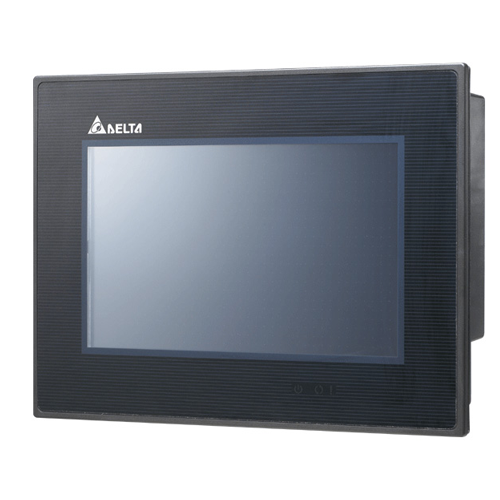

Delta DOP-B07S515 7" TFT LCD Touch Screen Panel HMI DOPB07S515 1PC DOPB07S515

Description:

The Delta DOP-B07S515 Touch Screen HMI is used in PLC-controlled automation systems to provide operator interface, visualization, and real-time control, commonly installed in industrial control panels, packaging machines, production lines, and process automation systems, and maintenance teams and system integrators use this HMI for replacement, system upgrades, or automation retrofits.

Applications:

The Delta DOP-B07S515 HMI is used in industrial environments where user interaction and system monitoring are essential, commonly applied in manufacturing lines, conveyor systems, water treatment facilities, food processing equipment, and machine control panels to enable efficient operation, real-time data visualization, and improved control accuracy.

Technical Specifications:

• Brand: Delta Electronics
• Part Number: DOP-B07S515
• Product Type: Touch Screen HMI
• Display Size: 7 inches
• Resolution: 800 x 480 pixels
• Display Type: TFT LCD
• Touch Type: Resistive touch panel
• Communication Ports: RS-232, RS-422, RS-485
• Ethernet: Not available
• USB Ports: USB Host and USB Device
• Memory: Built-in flash memory
• Input Voltage: 24V DC
• Mounting Type: Panel mount
• Operating Temperature: 0°C to 50°C
• Protection Class: IP65 (front panel)

Common Replacements:

• Delta DOP-B07E515 Touch Screen HMI
• Delta DOP-107BV Touch Screen HMI
• Weintek MT8071iE Touch Screen HMI
