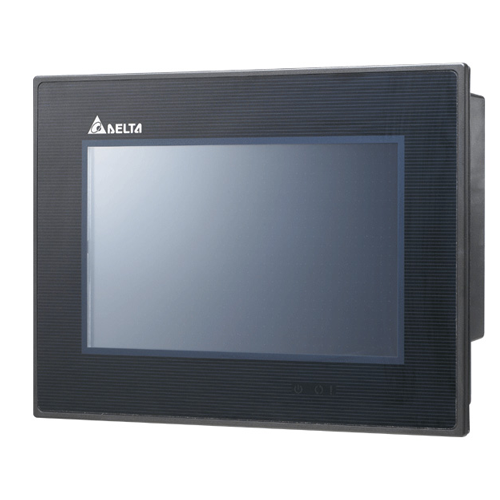

Delta DOP-B10S615 PLC TFT LCD HMI Touch Screen Display Panel DOPB10S615

Description:

The Delta DOP-B10S615 HMI touch screen is used in industrial automation systems to provide operator interface control and real-time visualization of machine processes. Commonly installed in packaging machines, CNC systems, conveyor lines, and factory automation equipment where user-friendly monitoring and control is required. Maintenance teams and system integrators use this HMI for system upgrades, operator interface replacement, and integration with PLC-based control systems.

Applications:

The Delta DOP-B10S615 HMI is widely used in industrial automation environments to enable operators to monitor, control, and interact with machinery. It is deployed in manufacturing lines, food processing equipment, water treatment systems, and packaging machinery to display process data, adjust parameters, and improve operational efficiency through intuitive touchscreen interfaces and real-time system feedback.

Technical Specifications:

• Manufacturer: Delta Electronics
• Manufacturer Part Number: DOP-B10S615
• Product Series: DOP-B Series
• Product Type: HMI Touch Screen
• Display Size: 10.1-inch widescreen TFT LCD
• Resolution: 1024 × 600 pixels
• Display Colors: 65,536 (16-bit)
• Processor: 400 MHz MCU
• Memory: 64 MB RAM / 128 MB Flash ROM
• Backup Memory: 16 MB
• Communication Ports:
• COM1: RS-232
• COM2/COM3: RS-232 / RS-422 / RS-485
• USB Ports: USB Host (v1.1) and USB Client (v2.0)
• Power Supply: 24 VDC
• Power Consumption: Approx. 12 W
• Protection Rating: IP65 / NEMA 4X (front panel)
• Operating Temperature: 0°C to 50°C
• Mounting: Panel mount
• Software: Compatible with Delta DOPSoft
• Status: Discontinued (replaced by newer models)

Common Replacements:

• Delta DOP-108IS HMI
• Delta DOP-110CS HMI
• Delta DOP-107CV HMI
