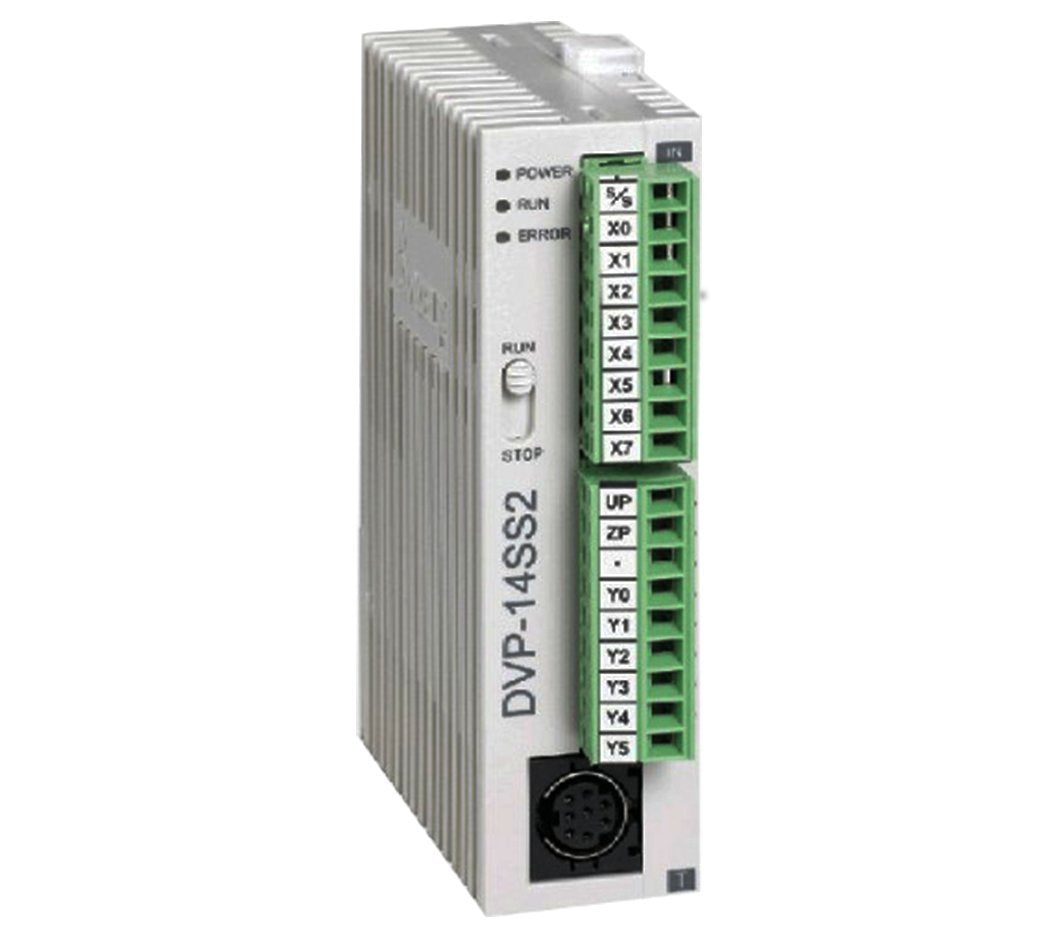

Delta DVP-14SS211R Programmable Logic Controller 8K Steps DVP14SS211R

Description:

DVP14SS211R  PROGRAMMABLE LOGIC CONTROLLER 24VDC 1.8W 1.5A 250VAC 50/60HZ The Delta DVP-14SS211R is a compact and cost-effective programmable logic controller (PLC) designed for small to medium-scale automation applications. This controller belongs to the Delta DVP-SS2 series, known for its high-speed processing, reliability, and easy integration with various industrial equipment. The DVP-14SS211R features a powerful CPU with an 8K steps program capacity, multiple input/output channels, and advanced communication options. It is well-suited for controlling industrial machinery, conveyors, and other automation systems where precision and efficiency are required.

Technical Specifications:

• Model: DVP-14SS211R
• Series: DVP-SS2
• Program Capacity: 8K steps
• Input/Output:
• Digital Inputs: 8 (24V DC)
• Digital Outputs: 6 relay outputs
• Supply Voltage: 24V DC
• Program Execution Speed: Basic instruction processing speed of 0.64 µs
• Memory:
• Program memory: 8K steps
• Data memory: 5,000 words
• Communication Ports:
• 1 x RS232
• 1 x RS485
• Extension Modules: Supports up to 8 extension modules (digital or analog I/O, temperature, communication)
• Built-in Functions:
• High-speed counters
• Pulse output (2 points)
• Timer, counter, and data register functions
• Programming Software: Delta WPLSoft, compatible with ladder logic programming
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Dimensions: 90 mm (H) x 95 mm (W) x 52 mm (D)
• Mounting: DIN rail or panel mounting
• Features:
• Fast and efficient processing with a 0.64 µs execution time for basic instructions
• Compact design ideal for space-constrained applications
• Relay output for direct control of industrial devices
• Supports high-speed counters and pulse output for precision control
• Flexible expansion options with up to 8 additional I/O modules
• Reliable communication options through RS232 and RS485 ports for remote monitoring and control
