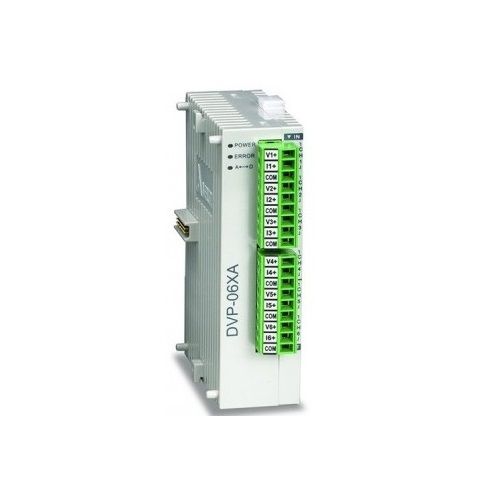

Delta DVP06XA-S PLC Extension Module DVP06XAS

Description:

The Delta DVP06XA-S PLC extension module is used in Delta DVP series automation systems to provide mixed analog input and output capability for process control applications. Commonly installed in control panels, machinery, and industrial production systems where analog signal monitoring and control are required. Maintenance teams and system integrators use this module for system expansion, analog signal integration, and replacement of existing PLC I/O modules.

Applications:

The Delta DVP06XA-S module is commonly deployed in industrial automation environments where analog signals such as temperature, pressure, flow, and speed must be monitored and controlled. It is used in manufacturing lines, HVAC systems, water treatment plants, and process control systems to interface sensors and actuators with PLC systems, enabling precise measurement, control, and real-time data processing across automated operations.

Technical Specifications:

• Manufacturer: Delta Electronics
• Manufacturer Part Number: DVP06XA-S
• Product Series: DVP Series (Slim Expansion)
• Product Type: Analog I/O Expansion Module
• Total I/O Points: 6 (4 Analog Inputs, 2 Analog Outputs)
• Analog Input Range: ±10 VDC or ±20 mA selectable
• Analog Output Range: 0–10 VDC or 0–20 mA
• Resolution: 12-bit analog conversion
• Communication: RS-485 (Modbus support via PLC)
• Control Method: PLC-controlled via FROM/TO instructions
• Power Supply: 24 VDC or 100–240 VAC (model dependent)
• Mounting Type: DIN rail mount
• Operating Temperature: 0°C to 55°C
• Compatibility: Delta DVP-S series PLCs
• Function: Converts analog signals to digital and vice versa for PLC processing

Common Replacements:

• Delta DVP06XA-S2 Analog I/O Module
• Delta DVP06XA-E2 Analog I/O Module
• Delta DVP06AD-S Analog Input Module
