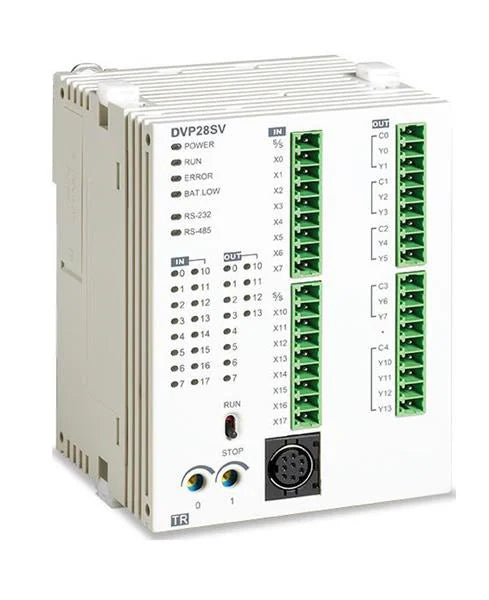

Delta DVP28SV11R2 Programming Logic Controller

DESCRIPTION
The Delta DVP28SV11R2 is a compact and powerful Slim Series Programmable Logic Controller (PLC) designed for mid-sized control applications. It features 28 I/O points, including 16 digital inputs and 12 relay outputs, and serves as a main processing unit (MPU) in Delta’s DVP-SV series. Known for fast execution speed and multi-function capabilities, this model supports PID control, high-speed counters, pulse output, and communication protocols such as RS-232 and RS-485. It’s widely used in packaging, machine tools, and process control.

TECHNICAL SPECIFICATIONS
Model Number: DVP28SV11R2
Series: DVP-SV (Slim Series)
MPU Type: Advanced MPU
Digital Inputs: 16 points (24VDC sink/source)
Digital Outputs: 12 points (Relay type)
Output Current: 2A per point max (Relay)
Program Capacity: 16k steps
Data Registers: 10k words
Execution Speed: 0.24 μs per basic instruction
Communication Ports:
– RS-232 (1 port)
– RS-485 (1 port, Modbus ASCII/RTU supported)
High-Speed Counters: 100kHz (up to 4 channels)
Pulse Output: Up to 100kHz (2 channels)
Real-Time Clock: Built-in
Power Supply: 24V DC
Dimensions: Approx. 125 x 90 x 60 mm
Mounting: DIN rail or panel
Expansion: Supports digital and analog I/O expansion modules
