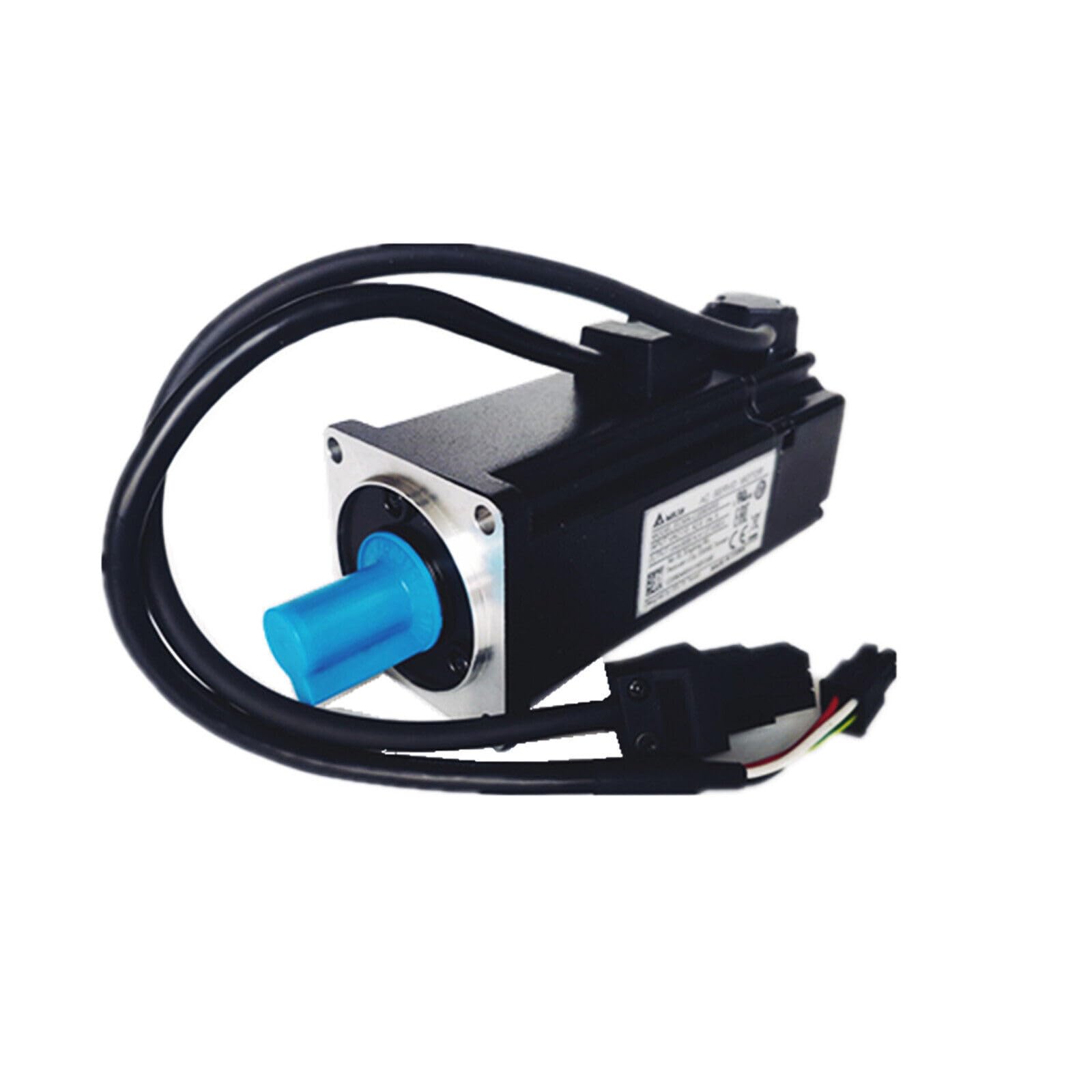

Delta ECMA-C10807SS Brake Servo Motor 750W ECMAC10807SS

Description:

The Delta ECMA-C10807SS AC Servo Motor with Brake is used in PLC-controlled motion systems requiring precise positioning, speed control, and holding capability, commonly installed in CNC machines, automated assembly lines, packaging equipment, and robotic systems, and maintenance teams and system integrators use this motor for replacement, system upgrades, or automation retrofits.

Applications:

The Delta ECMA-C10807SS servo motor is used in industrial automation environments where accurate motion control and load holding are required, commonly applied in vertical axis systems, CNC machining centers, pick-and-place machines, conveyor automation, and packaging equipment to ensure precise positioning, stable operation, and reliable holding performance during power loss.

Technical Specifications:

• Brand: Delta Electronics
• Part Number: ECMA-C10807SS
• Product Type: AC Servo Motor with Brake
• Rated Power: 750W
• Rated Voltage: 220V AC
• Encoder Type: 17-bit absolute encoder
• Rated Speed: 3000 RPM
• Maximum Speed: Up to 5000 RPM
• Rated Torque: Approximately 2.39 Nm
• Peak Torque: Approximately 7.16 Nm
• Brake Type: Electromagnetic holding brake
• Shaft Type: Keyway shaft
• Frame Size: 80 mm
• Protection Class: IP65 (motor body)
• Cooling Method: Natural cooling
• Mounting Type: Flange mount
• Insulation Class: Class F

Common Replacements:

• Delta ECMA-C10807FS AC Servo Motor
• Delta ECMA-C10807RS AC Servo Motor
• Mitsubishi HG-KR73B AC Servo Motor
