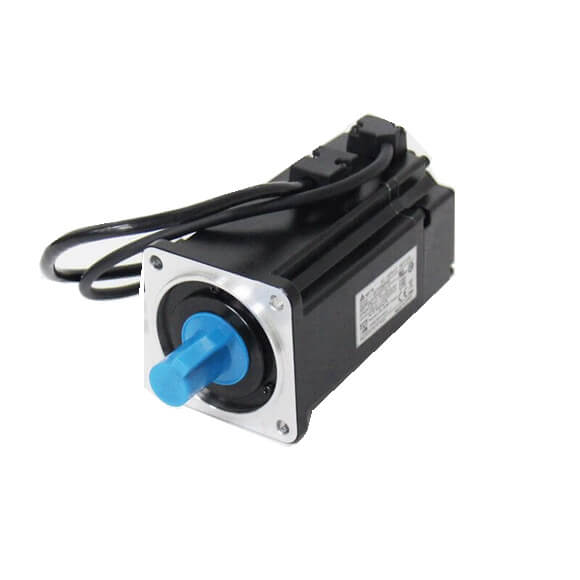

Delta ECMA-C20807RS AC Servo Motor Drive 220V 750W 2.39NM 3000rpm

Description:

The Delta ECMA-C20807RS AC servo motor is used in industrial motion control systems to deliver precise positioning, speed, and torque control for automated machinery. Commonly installed in CNC machines, robotics, packaging equipment, and conveyor systems where accurate and responsive motion control is required. Maintenance teams and system integrators use this motor for motion system integration, machine upgrades, and replacement of existing servo motors.

Applications:

The Delta ECMA-C20807RS servo motor is widely deployed in industrial automation environments requiring high-precision and dynamic motion control. It is used in CNC machining centers, pick-and-place systems, labeling machines, printing equipment, and automated conveyors to provide smooth motion, consistent torque, and accurate positioning, improving overall production efficiency and system reliability.

Technical Specifications:

• Manufacturer: Delta Electronics
• Manufacturer Part Number: ECMA-C20807RS
• Product Series: ECMA-B2 Series
• Product Type: AC Servo Motor
• Rated Power: 0.75 kW (750 W)
• Rated Voltage: 220 VAC
• Rated Speed: 3000 RPM
• Maximum Speed: Up to 5000 RPM
• Rated Torque: 2.39 Nm
• Encoder Type: 17-bit incremental encoder
• Frame Size: 80 mm
• Shaft Diameter: 19 mm keyway shaft
• Inertia: ~1.13 × 10⁻⁴ kg·m²
• Construction: Low inertia design, oil seal, no brake (standard)
• Mounting: Flange-mounted servo motor
• Application: Precision motion control systems

Common Replacements:

• Delta ECMA-C20807SS Servo Motor
• Delta ECMA-C21010RS Servo Motor
• Delta ECMA-E21310RS Servo Motor
