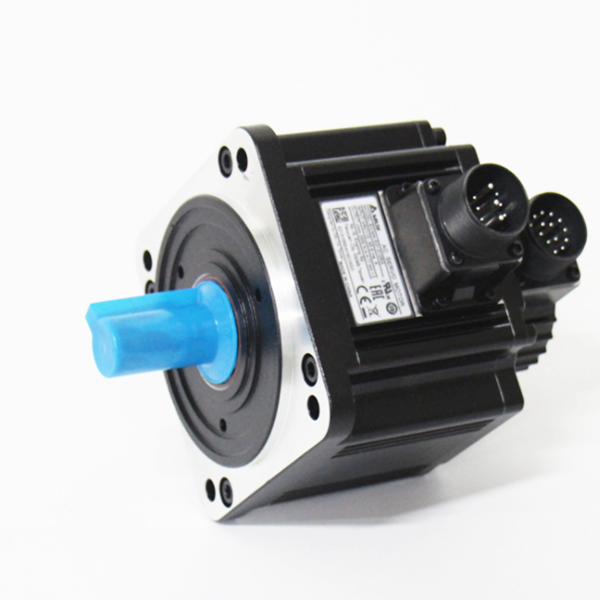

Delta ECMA-E31315PS PLC 1500W 1.5kW AC Servo MOTOR ECMAE31315PS

DESCRIPTION
The Delta ECMA-E31315PS is a 1.5 kW servo motor from the ECMA series, designed for high-precision motion control in demanding industrial automation systems. It operates at 3000 RPM with a rated voltage of 220V and comes equipped with a 20-bit absolute encoder for accurate feedback and positioning. This model includes an integrated electromagnetic brake, making it suitable for vertical or safety-critical axis applications. The motor is optimized for compatibility with Delta’s ASDA-A2 and ASDA-B2 series servo drives.

TECHNICAL SPECIFICATIONS
Model: ECMA-E31315PS
Series: ECMA
Rated Power: 1.5 kW
Rated Voltage: 220V AC
Rated Speed: 3000 RPM
Maximum Speed: 5000–6000 RPM
Rated Torque: Approx. 4.77 Nm
Shaft Type: Straight with key
Encoder Type: 20-bit Absolute Encoder
Brake: Yes (Electromagnetic holding brake)
Protection Class: IP65 (except shaft and connectors)
Cooling Method: Natural convection
Mounting: Flange mount
Compatible Drives: Delta ASDA-A2, ASDA-B2 series
