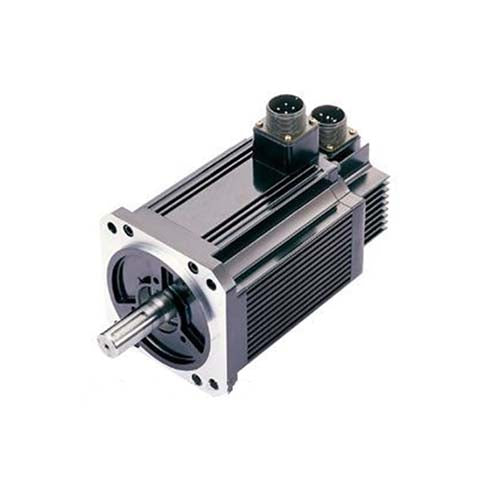

Delta Servo Motor ECMA-F11845RS 220V 4.5kW ECMAF11845RS

Description:

The Delta ECMA-F11845RS AC servo motor is used in industrial motion control systems to deliver high-power, high-precision positioning, speed, and torque control for demanding automation applications. Commonly installed in CNC machines, heavy-duty packaging systems, robotics, and material handling equipment where strong torque output and accurate motion are required. Maintenance teams and system integrators use this motor for high-performance motion integration, system upgrades, and replacement of existing servo motors.

Applications:

The Delta ECMA-F11845RS servo motor is commonly deployed in industrial automation environments requiring high torque and dynamic motion control. It is used in CNC machining centers, automated assembly lines, large-scale conveyors, printing systems, and packaging equipment to provide consistent torque, smooth acceleration, and precise positioning, improving overall machine efficiency and production reliability.

Technical Specifications:

• Manufacturer: Delta Electronics
• Manufacturer Part Number: ECMA-F11845RS
• Product Series: ECMA Series
• Product Type: AC Servo Motor
• Rated Output Power: 4.5 kW
• Input Voltage: 200–230 VAC
• Rated Speed: Approximately 1500 RPM
• Maximum Speed: Up to 3000 RPM
• Rated Torque: Approximately 28.6 Nm
• Maximum Torque: Up to 85.8 Nm
• Encoder Type: High-resolution incremental encoder (20-bit)
• Frame Size: 180 mm class
• Protection Rating: IP65
• Shaft Type: Keyway shaft with oil seal
• Brake: No brake (standard configuration)
• Mounting: Flange-mounted industrial servo motor
• Compatibility: Designed for Delta ASDA servo drive series

Common Replacements:

• Delta ECMA-F11845SS Servo Motor
• Delta ECMA-F11830RS Servo Motor
• Delta ECMA-F11860RS Servo Motor
