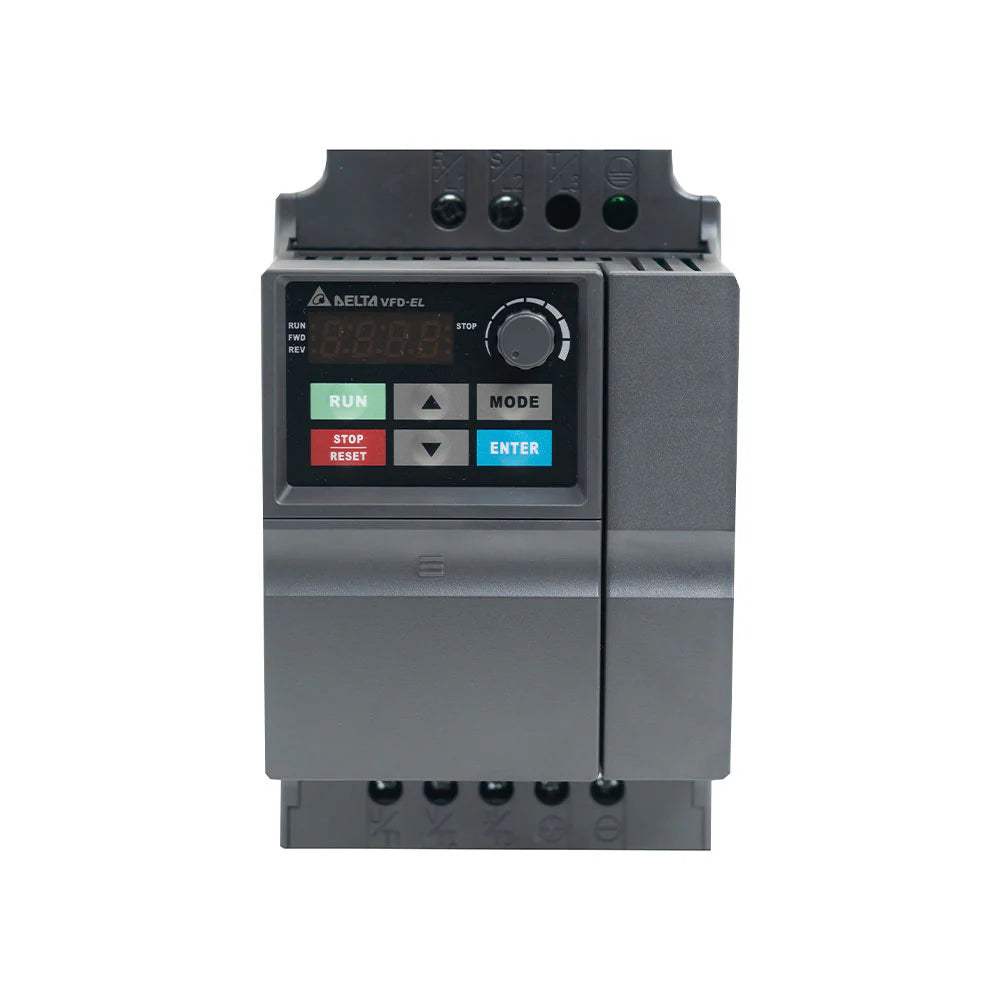

Delta VFD022EL21A AC Drives 3Hp 230V Single Phase Input VFD022EL21A

Description:

The Delta VFD022EL21A AC Drive is used in PLC-controlled motor control systems to regulate speed and torque of single-phase powered three-phase induction motors, commonly installed in pumps, fans, conveyors, compressors, and small automation equipment, and maintenance teams and system integrators use this drive for replacement, energy-saving upgrades, or automation retrofits.

Applications:

The Delta VFD022EL21A variable frequency drive is used in industrial and light-duty automation environments where compact motor control and energy efficiency are required, commonly applied in water pumping systems, ventilation equipment, small conveyor systems, woodworking machines, and packaging equipment to provide smooth motor operation, adjustable speed control, and reduced power consumption.

Technical Specifications:

• Brand: Delta Electronics
• Part Number: VFD022EL21A
• Product Type: AC Variable Frequency Drive (VFD)
• Rated Power: 3 HP (2.2 kW)
• Input Voltage: 230V AC, Single Phase
• Output Voltage: 0–230V AC, Three Phase
• Output Frequency Range: 0–400 Hz
• Control Method: V/F Control, Sensorless Vector Control
• Overload Capacity: 150% for 60 seconds
• Communication Interface: RS-485 (Modbus)
• Protection Functions: Overcurrent, overvoltage, undervoltage, overload, overheating
• Cooling Method: Forced air cooling
• Mounting Type: Panel mount
• Operating Temperature: -10°C to 50°C

Common Replacements:

• Delta VFD022EL23A AC Drive
• Delta VFD022B21A AC Drive
• Schneider ATV12HU22M2 AC Drive
