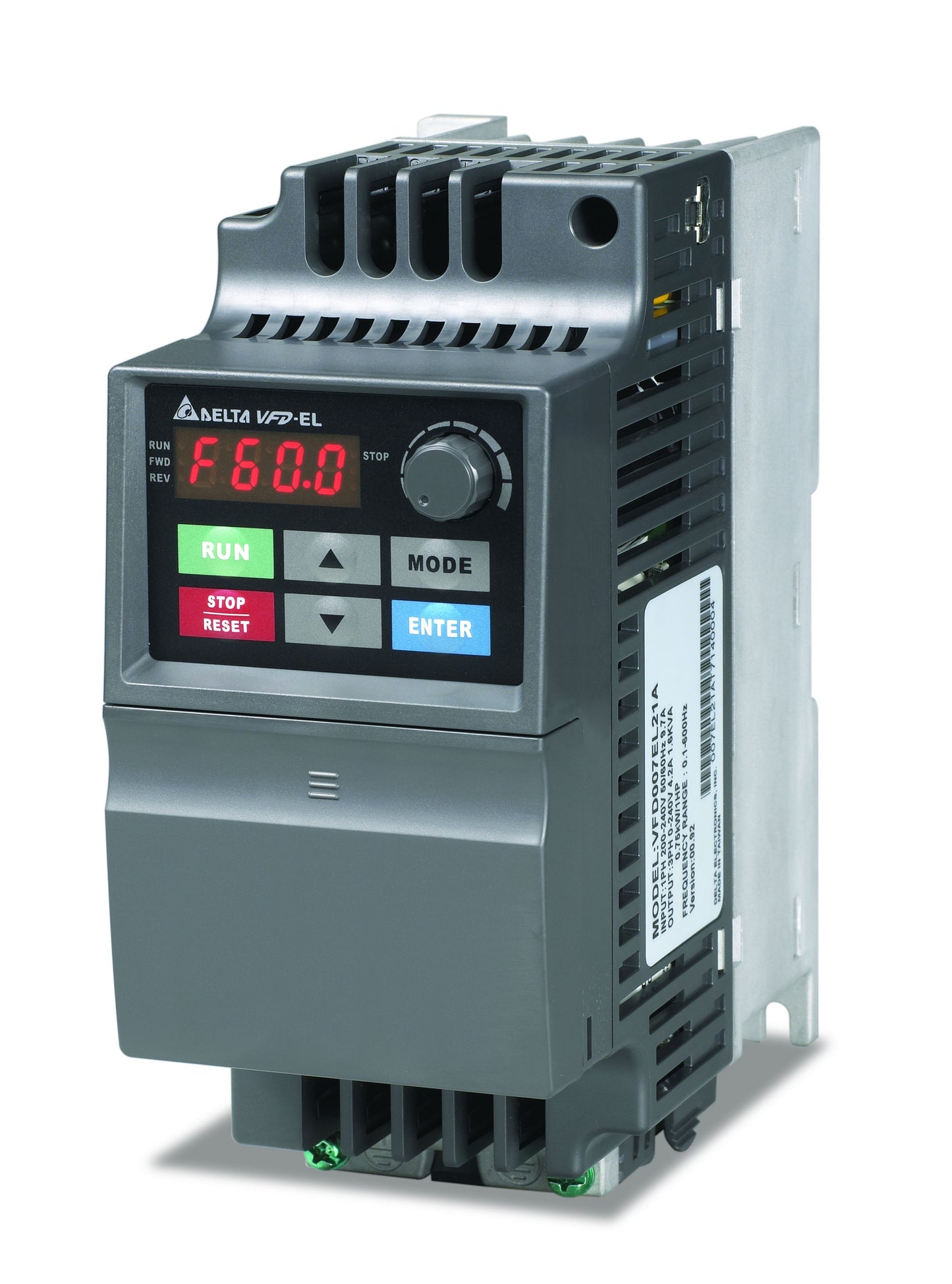

Delta VFD022EL43A PLC Programmable 3Hp 460V Three Phase Input AC Micro Drive

Description:

VFD022EL43A VFD DRIVE 230V 3PH 460V THREE PHASE INPUT 3PH OUTPUT The Delta VFD022EL43A is a programmable micro drive designed for precise control of three-phase AC motors. This versatile variable frequency drive (VFD) is suitable for applications requiring motor control and speed regulation, including HVAC systems, conveyors, and other industrial machinery. With a focus on flexibility and efficiency, the VFD022EL43A supports various motor control modes and features advanced programming capabilities to meet diverse application needs.

Technical Specifications:

• Model: VFD022EL43A
• Type: Programmable Variable Frequency Drive (VFD)
• Power Rating: 3 HP (2.2 kW)
• Input Voltage: 460V AC, three-phase
• Output Voltage: 460V AC, three-phase
• Current Rating: 4.6 A
• Frequency Range: 0-400 Hz
• Control Modes:
• V/f (Volts per Hertz) control
• Sensorless vector control
• Closed-loop vector control (optional)
• Programming:
• Adjustable parameters for motor speed, torque, acceleration, and deceleration
• Multiple preset and custom functions for flexible application control
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Protection Rating: IP20 (suitable for indoor use)
• Cooling: Fan-cooled for effective thermal management
• Communication Ports:
• RS485 for communication with external devices and controllers
• Optional communication modules for additional interfaces (e.g., Modbus, CANopen)
• Display: LCD or LED display for easy programming and monitoring
• Features:
• Advanced motor control algorithms for precise speed and torque regulation
• Built-in protection features such as overvoltage, undervoltage, overcurrent, and overheating
• User-friendly interface for straightforward setup and parameter adjustment
• Compact design for space-saving installation in control panels or machinery enclosures
