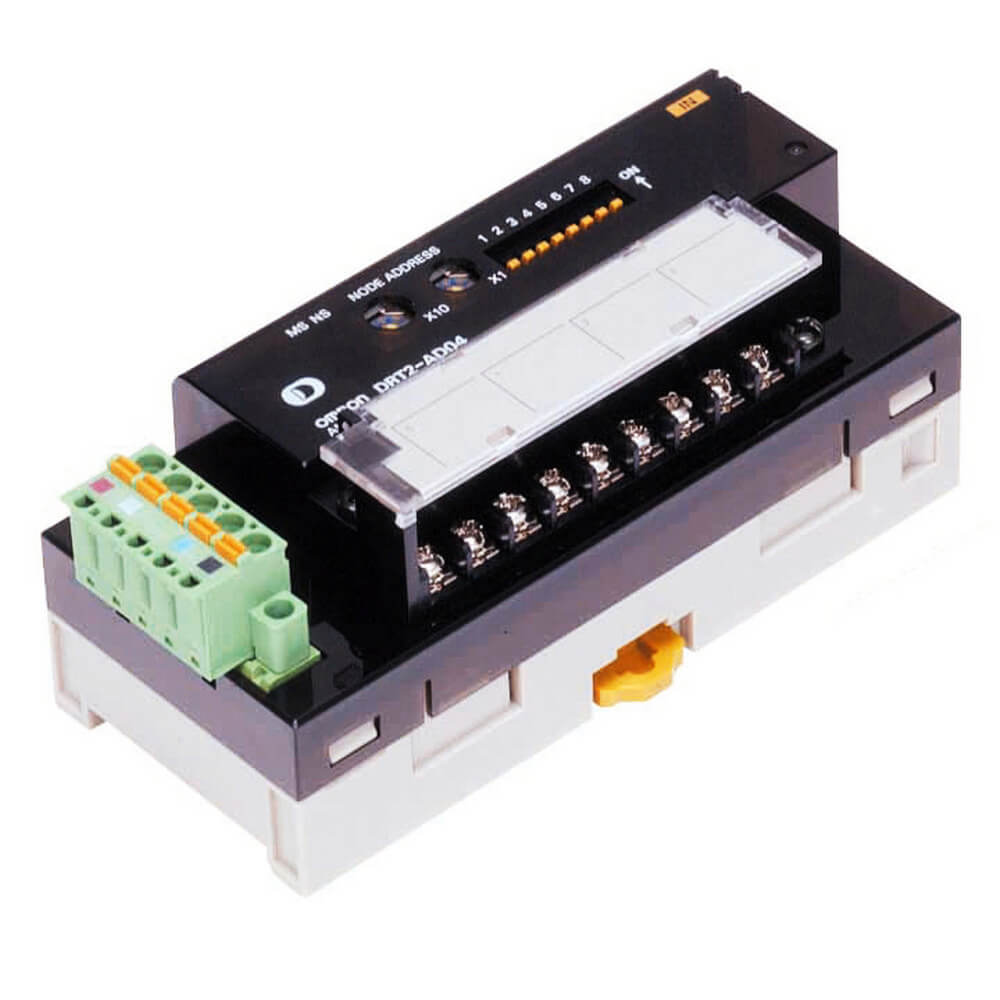

DRT2-AD04H DRT2AD04H Analog Terminal

DESCRIPTION
The Omron DRT2-AD04H is a high-resolution 4-channel analog input terminal designed for use with DeviceNet networks. As part of the Smart Slave series, it provides precise monitoring and diagnostic capabilities directly from the I/O level. Each input supports voltage or current signals, enabling integration of analog sensors into your control system with minimal complexity. It also features scaling, offset adjustment, and peak/bottom hold functions, making it suitable for a wide range of process control and machine automation applications.

TECHNICAL SPECIFICATIONS
Manufacturer: Omron
Model: DRT2-AD04H
Input Channels: 4 analog input channels
Input Type: Voltage (0–10 V) or Current (4–20 mA)
Resolution: 1/6000 (high-resolution mode)
Power Supply Voltage: 24 VDC
Current Consumption: Approx. 130 mA max.
Communication Interface: DeviceNet
Mounting Type: DIN rail
Operating Temperature: 0 to 55°C
Dimensions: Approx. 75 x 70 x 31 mm
Features: Smart slave functions, diagnostics, scaling, offset correction, data logging support
