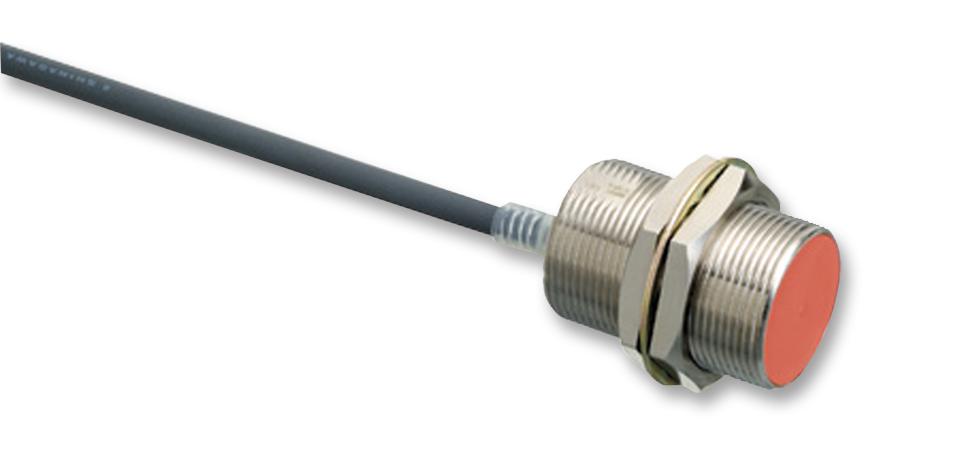

Omron E2E-X10E1 Cylindrical Proximity Sensor E2EX10E1

Description:

The Omron E2E-X10E1 Cylindrical Proximity Sensor is an inductive proximity sensor used in industrial metal detection and positioning systems. Commonly installed in conveyor systems, machine tools, and automated assembly equipment. Maintenance teams and system integrators use this part for replacement, retrofit, and ensuring reliable non-contact detection in automation systems.

Applications:

The Omron E2E-X10E1 Cylindrical Proximity Sensor is used in industrial environments for detecting metallic objects without physical contact. It is widely applied in automated production lines, material handling systems, and machinery where accurate position sensing and object detection are critical for maintaining efficiency, safety, and process reliability. Inductive sensors detect ferrous metals within a defined sensing distance, making them suitable for robust industrial automation applications.

Technical Specifications:

• Manufacturer: Omron
• Part Number: E2E-X10E1
• Product Type: Inductive Cylindrical Proximity Sensor
• Series: E2E Series
• Sensing Distance: 10 mm ±10%
• Sensor Type: Inductive (metal detection)
• Mounting Type: Cylindrical threaded (M30), shielded
• Output Type: NPN, Normally Open (3-wire DC)
• Power Supply: 10–30 V DC
• Response Frequency: Approx. 400 Hz
• Current Consumption: Max. 17 mA
• Sensing Object: Ferrous metals (reduced sensitivity for non-ferrous)
• Protection Rating: Industrial grade (IP-rated, model dependent)

Common Replacements:

• Omron E2E-X10D1-N Proximity Sensor
• Omron E2E-X10ME1 Proximity Sensor
• Omron E2E-X7D1-N Proximity Sensor
