Omron

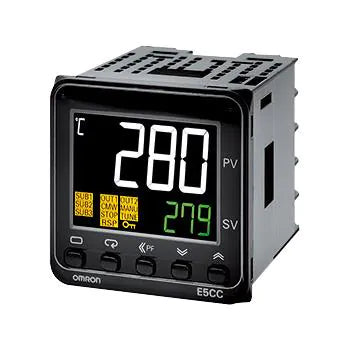

Omron E5CC-CX2ASM-804 Temperature Controller E5CCCX2ASM804

Omron E5CC-CX2ASM-804 Temperature Controller E5CCCX2ASM804

Condition
Regular price $210.00
Regular price Sale price $210.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

E5CCCX2ASM804 RELAY OUTPUT 2 AUXILIARY OUTPUT 100 TO 240 VAC WHITE PV DISPLAY HEIGHT OF 15.2 MM The E5CC-CX2ASM-804 is a high-precision digital temperature controller from Omron's E5CC series, designed to offer reliable and accurate temperature regulation for various industrial processes. Featuring a sleek, compact design, this controller integrates seamlessly into control panels and offers a clear, easy-to-read display for real-time temperature monitoring and adjustments. With its advanced PID control algorithm, the E5CC-CX2ASM-804 ensures optimal temperature stability and precision, making it suitable for applications that demand stringent temperature control. The unit supports a range of input types and communication options, providing flexibility and adaptability to diverse industrial environments.

Technical Specifications:

  • Model: E5CC-CX2ASM-804
  • Display Type: LCD, 3.4-inch
  • Input Type: Thermocouple (K, J, T, R, S, B), RTD (Pt100), or voltage/current inputs
  • Control Output: Relay (SPST-NO), SSR control, or 4-20mA output (selectable)
  • Control Method: PID, ON/OFF
  • Temperature Range: -199.9°C to 1999°C (depending on input type)
  • Accuracy: ±0.3°C (or ±0.1% of span)
  • Resolution: 1°C or 0.1°C (selectable)
  • Communication Ports: RS-485 (Modbus RTU)
  • Alarm Functions: Up to 2 alarm outputs (high/low, deviation)
  • Operating Temperature Range: 0°C to +55°C
  • Storage Temperature Range: -20°C to +75°C
  • Dimensions: 48mm x 48mm x 83mm (W x H x D)
  • Weight: Approximately 0.2 kg
  • Mounting: Panel mount (cutout size: 45mm x 45mm)
  • Certification: CE, UL
