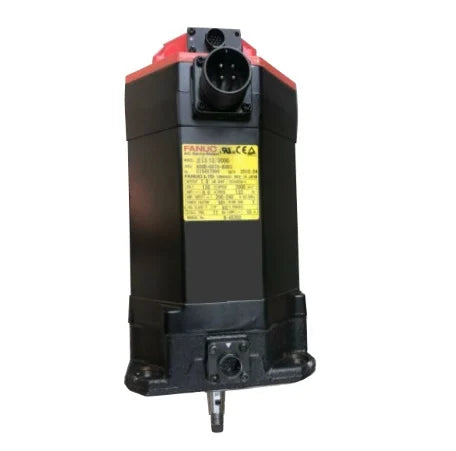

Fanuc A06B-0078-B303 AC Servo Motor A06B0078B303

Description:

A06B0078B303 SERVO MOTOR AC MOTOR AC SERVO MOTOR BIS12/3000 B128IA W/BRAKE TAPER SHAFT AC MOTOR TYPE BIS12/3000 TAPERED SHAFT BRAKE BETA 128IA CNC The A06B0078B303 is a high-performance AC servo motor manufactured by FANUC, designed to provide precise motion control for demanding industrial applications. This servo motor is engineered to deliver smooth and reliable operation with high torque and exceptional speed regulation. Its advanced feedback system, including an integrated encoder, ensures accurate positioning and velocity control, making it ideal for use in CNC machines, robotics, and automated production lines. The motor’s robust construction and high durability make it suitable for continuous operation in challenging environments, contributing to enhanced productivity and system efficiency.

Technical Specifications:

• Model: A06B0078B303
• Type: AC Servo Motor
• Rated Voltage: 200V AC
• Rated Current: 6.5A
• Rated Speed: 1500 RPM
• Rated Torque: 3.0 Nm
• Feedback Device: Incremental Encoder
• Encoder Resolution: 2500 P/R
• Insulation Class: F
• Protection Class: IP65
• Operating Temperature Range: 0°C to 40°C
• Dimensions (L x W x H): 250mm x 200mm x 350mm
• Weight: 7.0 kg
• Mounting Type: Flange mount
