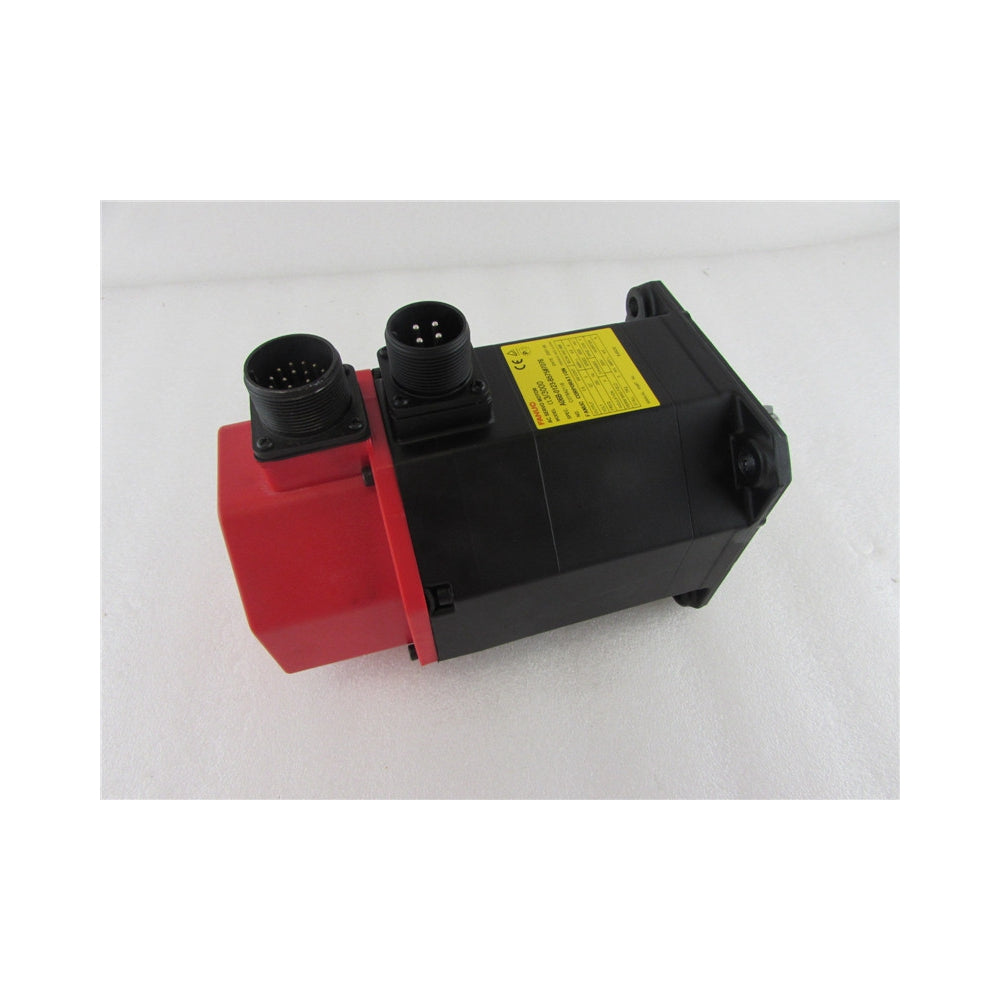

Fanuc A06B-0371-B077 AC Servo Motor A06B0371B077
Fanuc A06B-0371-B077 AC Servo Motor A06B0371B077
Couldn't load pickup availability





Description:
The A06B-0371-B077 is a robust and high-performance AC servo motor manufactured by FANUC, designed for precision and reliability in demanding industrial automation environments. This servo motor provides exceptional speed and torque control, making it ideal for use in CNC machines, robotics, and other advanced automation systems. It features an integrated high-resolution encoder that ensures accurate feedback and precise motion control. The A06B-0371-B077's durable construction and high torque-to-weight ratio contribute to enhanced system efficiency and reliability, supporting continuous operation in various industrial applications.
Technical Specifications:
- Model: A06B-0371-B077
- Type: AC Servo Motor
- Rated Voltage: 200V AC
- Rated Current: 4.0A
- Rated Speed: 2000 RPM
- Rated Torque: 1.5 Nm
- Feedback Device: Incremental Encoder
- Encoder Resolution: 2500 P/R
- Insulation Class: F
- Protection Class: IP65
- Operating Temperature Range: 0°C to 40°C
- Dimensions (L x W x H): 200mm x 160mm x 300mm
- Weight: 5.0 kg
- Mounting Type: Flange mount
