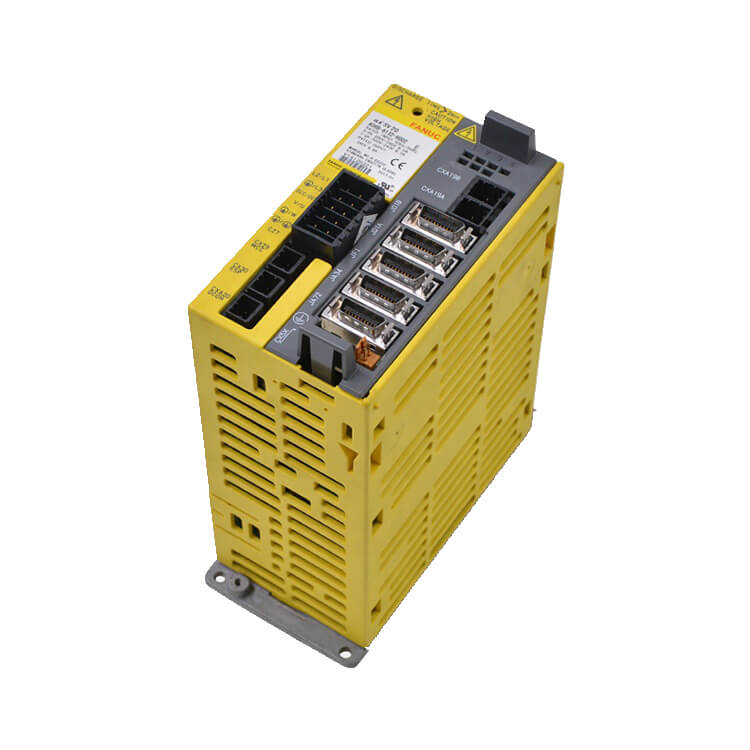

Fanuc A06B-6132-H002 Servo AMPLIFIER MOTOR MODULE I/O LINK INTERFACE A06B6132H002

Description:

The Fanuc A06B-6132-H002 is an AC servo amplifier module from the Beta i (βiSV) series, designed for CNC motion control systems. It functions as a combined servo amplifier and I/O Link interface, controlling servo motors while managing communication between the CNC controller and connected axes. Commonly installed in Fanuc 16i/18i/21i systems, it is used by maintenance teams and system integrators for precise motion control, system repair, and replacement of failed servo drive modules.

Applications:

This Fanuc servo amplifier module is used in CNC and industrial automation systems requiring accurate multi-axis motion control and communication. Typical applications include CNC machining centers, lathes, milling machines, and automated production equipment where synchronized motor control and reliable I/O communication are critical to system performance and uptime.

Technical Specifications:

• Manufacturer Part Number (MPN): A06B-6132-H002
• Product Type: AC Servo Amplifier / I/O Link Interface Module
• Series: Fanuc Beta i (A06B-6132 series)
• Model: BSVM1-20i
• Input Voltage: 200–240 VAC (1-phase or 3-phase)
• Frequency: 50/60 Hz
• Input Current: ~8 A
• Output Current: ~6.8 A
• Function: Servo motor control + I/O Link communication
• Axis Capacity: Typically supports up to 1–2 axes (Beta i module configuration)
• Integration: Installed in CNC control cabinet (modular drive system)
• Cooling: Forced air cooling
• Communication: Fanuc I/O Link interface
• Application: CNC motion control systems
• Mounting Type: Panel mount (drive rack system)
• Status: Discontinued / legacy component

Common Replacements:

• Fanuc A06B-6132-H003
• Fanuc A06B-6132-H004
• Fanuc A06B-6172-H002
