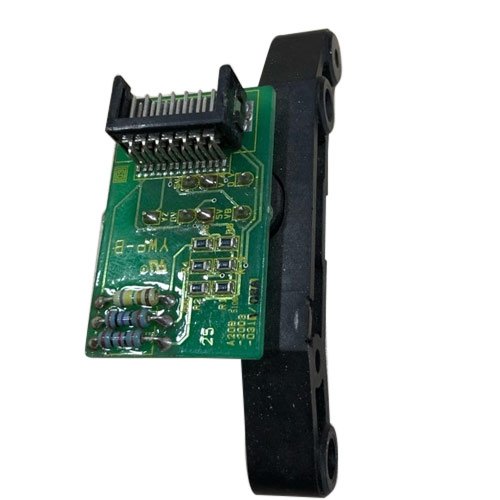

Fanuc A20B-2003-0311 Spindle Motor Encoder A20B20030311

Description:

The Fanuc A20B-2003-0311 is a spindle motor encoder PCB used in Fanuc CNC systems to provide precise feedback on spindle speed and position. It is typically mounted within the spindle motor or associated assembly, enabling synchronization between spindle rotation and axis movement. This component is critical for accurate machining operations such as threading and rigid tapping. Maintenance teams and system integrators use this encoder for system repair, feedback restoration, and replacement of failed spindle sensors.

Applications:

This Fanuc encoder is used in CNC and industrial automation systems requiring accurate spindle feedback and synchronization. Typical applications include CNC machining centers, lathes, and milling machines where precise spindle positioning, speed monitoring, and coordinated motion control are essential to system performance and machining accuracy.

Technical Specifications:

• Manufacturer Part Number (MPN): A20B-2003-0311
• Product Type: Spindle Motor Encoder / Feedback PCB
• Brand: Fanuc
• Function: Spindle position and speed feedback
• System Compatibility: Fanuc CNC controllers (16i / 18i / 21i and similar)
• Encoder Type: Magnetic / incremental encoder (model dependent)
• Integration: Installed on spindle motor or encoder assembly
• Signal Output: Pulse feedback to CNC controller
• Mounting Type: Internal PCB / motor-mounted
• Application: CNC spindle control systems
• Condition: Commonly available as new, surplus, or refurbished
• Status: Discontinued / legacy component

Common Replacements:

• Fanuc A20B-2003-0311/01A
• Fanuc A20B-2003-0310
• Fanuc A20B-2002-0300
