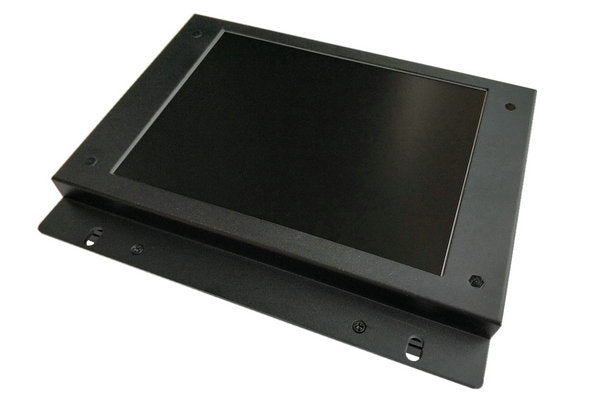

Fanuc A61L-0001-0086 LCD Compatible with All CRT Display Liquid Crystal A61L00010086

Description:

The Fanuc A61L-0001-0086 LCD Display is used in CNC control systems for visual interface and machine operation monitoring. Commonly installed in Fanuc CNC machines, control panels, and industrial machining centers using legacy CRT displays. Maintenance teams, OEMs, and system integrators use this display for system upgrade, CRT replacement, retrofit, and improved visual performance in CNC systems.

Applications:

The Fanuc A61L-0001-0086 LCD display is used in industrial environments such as CNC machining, manufacturing plants, and automation systems to replace outdated CRT monitors with modern LCD technology, providing clearer display output, improved reliability, and seamless integration with Fanuc control systems without requiring major modifications.

Technical Specifications:

• Manufacturer: Fanuc
• Model / Part Number: A61L-0001-0086
• Product Type: LCD Display (CRT Replacement Monitor)
• Display Type: TFT LCD with LED backlight
• Screen Size: Approx. 8.4"–9" diagonal
• Compatibility: Fanuc CNC systems (Series 6, 10, 11, 0-M, 0-T, etc.)
• Input Signal: TTL video (CGA/EGA/MDA compatible)
• Mounting: Drop-in replacement for original CRT housing
• Brightness: Approx. 450 cd/m²
• Contrast Ratio: Approx. 600:1
• Power Supply: Typically 9–36 V DC (model dependent)
• Connector Type: Industrial video connector (e.g., Honda 20-pin)
• Construction: Rugged steel chassis for industrial use
• Function: CRT-to-LCD upgrade for legacy systems

Common Replacements:

• Fanuc A61L-0001-0086-SUB-LCD
• Matsushita TR-9DKYC
• QES1508-078 LCD Upgrade Kit
