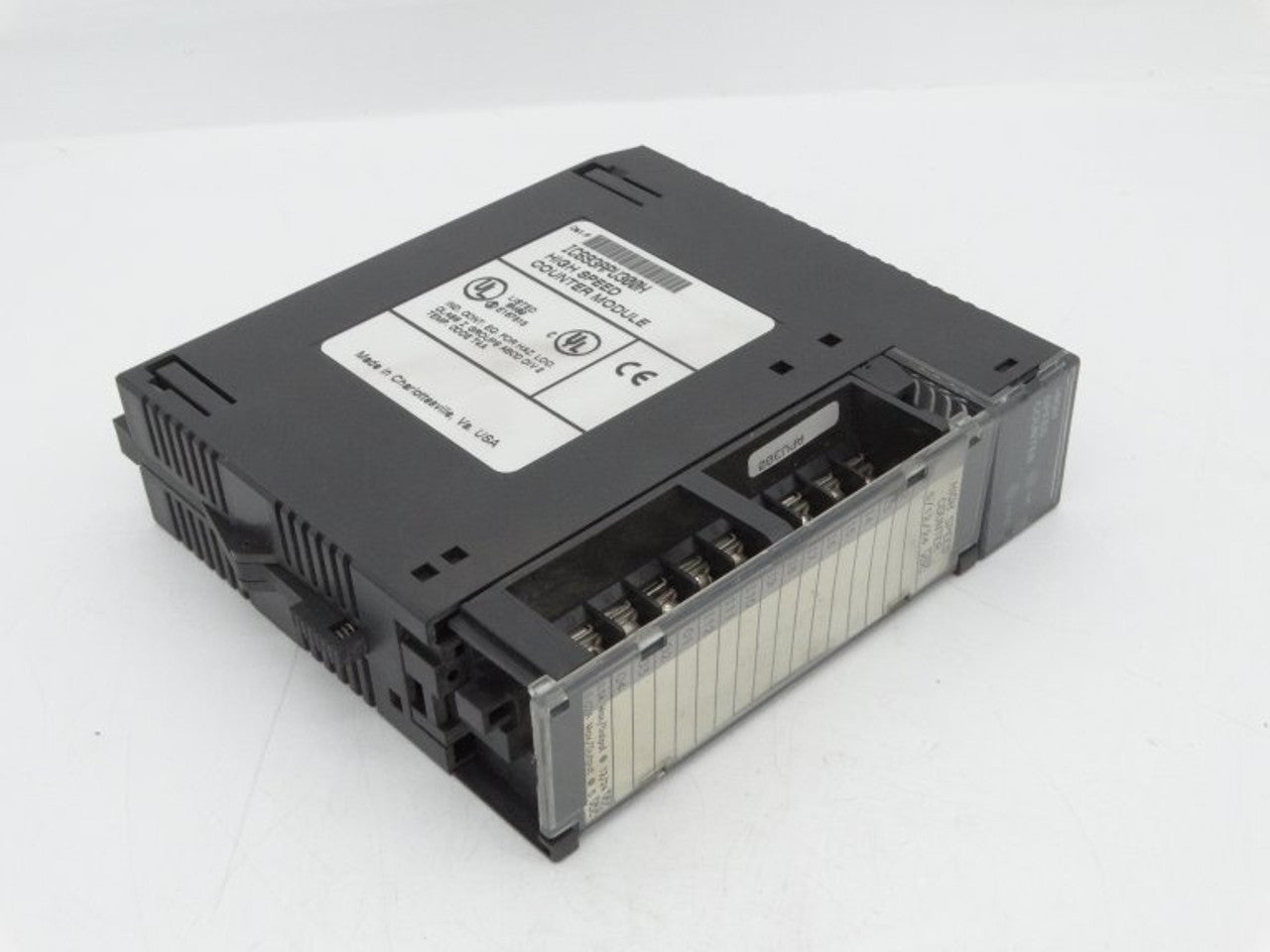

Fanuc IC693APU300 High Speed Counter Module

Description:

The GE Fanuc Emerson IC693APU300 high-speed counter module is used in industrial automation systems to process and count high-frequency pulse inputs for precise measurement and control applications. Commonly installed in GE Fanuc Series 90-30 PLC racks and control panels to handle encoder signals, flow measurements, and motion feedback. Maintenance teams and system integrators use this module for motion control systems, high-speed counting applications, automation upgrades, and replacement of legacy counter modules.

Applications:

The GE Fanuc Emerson IC693APU300 is commonly used in material handling systems, conveyor tracking, flow metering systems, turbine flow measurement, velocity monitoring, motion control systems, and industrial process automation where accurate high-speed pulse counting and signal processing are required.

Technical Specifications:

• Manufacturer Part Number (MPN): IC693APU300
• Product Type: High-Speed Counter (HSC) Module
• Series: GE Fanuc Series 90-30
• Input Channels: 12 positive logic inputs
• Output Channels: 4 positive logic outputs
• Input Voltage: 5 VDC or 10–30 VDC
• Output Voltage: 4.75–6 VDC or 10–30 VDC
• Output Current: Up to 500 mA per output
• Maximum Count Rate: Up to 200 kHz
• Minimum Count Rate: ~20 Hz / 20 kHz (mode dependent)
• Counter Modes: Up, Down, Bi-directional, Differential
• Input/Output Type: Positive logic
• Power Consumption: 250 mA @ 5 VDC
• Mounting Type: PLC rack slot (Series 90-30 baseplate)
• Indicators: LED status indicators (Board OK, Config OK)
• Application Environment: Industrial automation and motion control systems

Common Replacements:

• GE Fanuc IC693APU301
• GE Fanuc IC694APU300
• Allen-Bradley 1756-HSC
